Transducer XSONIC AIRMAR TM275L H-W
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description
Description

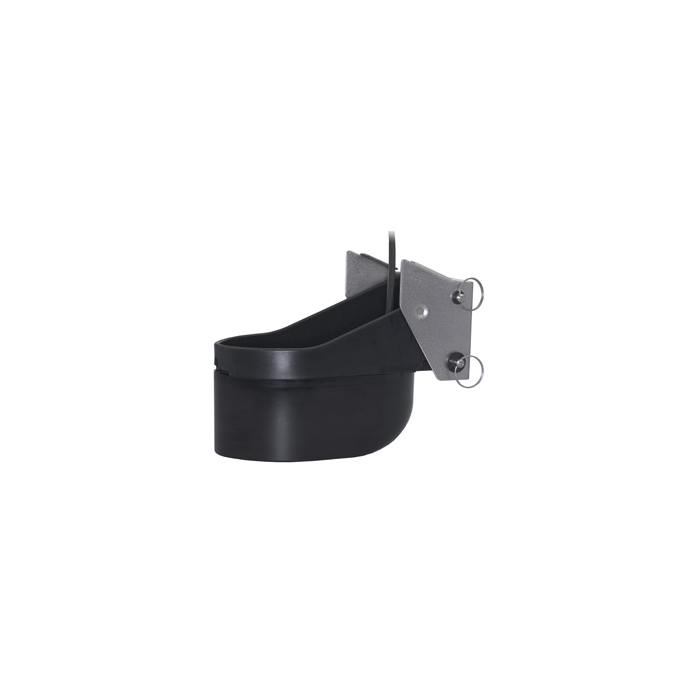

The TM275LH-W is a urethane, transom-mounted CHIRP transducer, ideal for sportfishing and commercial vessels 8 m (25 ft) and up. This dual-channel transducer combines Low CHIRP frequencies to accurately track the bottom in deep water, with High CHIRP at a constant 25° beam width for the best resolution and coverage in the upper water column and in shallower depths. The TM275C-LHW CHIRP transom-mount transducer has 8 internal, broadband ceramic elements. The low-frequency can be chirped from 42 to 65 kHz while the high-frequency chirps from 130 to 210 kHz. The beamwidth is a wide 25° across all frequencies. Also included is a high-precision water-temperature sensor for accurate sea-surface temperature readings.
General Specification
| Weight | 4 kg (8.9 lb.) |
| Recommended Boat Length | 10 m (32') and up |
| Transom Angle | 3° to 21° |
| Acoustic Window | Urethane |
| Includes | Stainless steel bracket and mounting hardware |
| Transducer Element | Eight internal broadband ceramic assemblies |
