Olympic 135 Black Compass with Black Rose
Download Document
Description

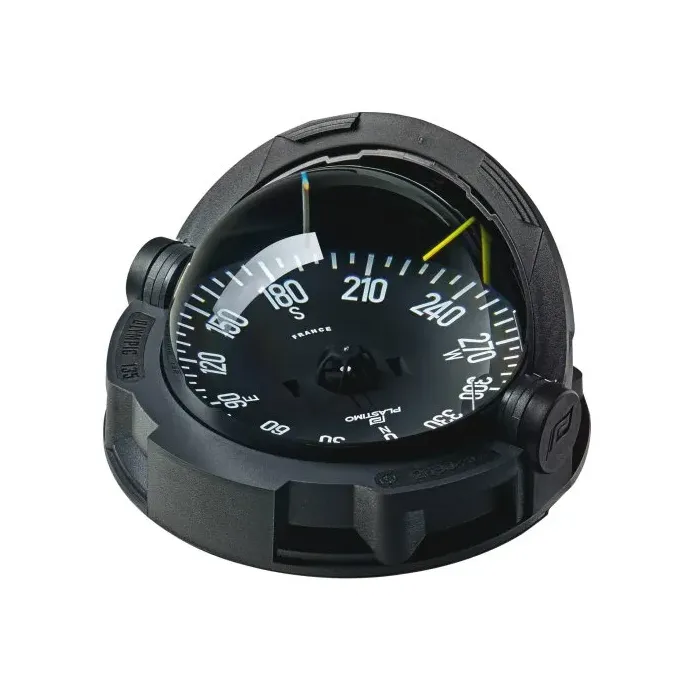

Olympic 135 Black Compass with Black Rose
Designed for demanding sailors and helmsmen who require maximum readability and reliability, the Plastimo Olympic® 135 is a top-tier steering compass suited for console or steering column mounting. With its large flat rose and ergonomic features, it is ideal for standing helmsmen seeking clear, precise navigation in all weather conditions.
Built with durability and accuracy in mind, the Olympic 135 features a flat card graduated every 5° with heading reminders every 30°, enhanced by three alidades set at 45° for multi-angle visibility. A retractable hood in three sliding parts offers added protection and glare reduction.
Key Features:
- Outstanding Legibility: Extra-large flat rose offers excellent visibility while standing or seated, with high-definition markings every 5° and heading reminders every 30°.
- Multi-Angle Reading: Equipped with three alidades for easy bearing reference from multiple helm positions.
- 5-Year Warranty: Assurance of long-term performance and quality construction.
Lighting & Visibility:
- LED Lighting (12–24 V): Integrated LED lighting ensures even, glare-free illumination for night-time navigation.
- Protective Hood: Innovative three-part retractable hood shields the rose from sunlight or adverse weather without impeding quick access.
Installation Options:
- Versatile Mounting: Supplied as standard for mounting on a steering console or column; includes drilling template for easy installation.
- Optional Flush-Mount Kit (Ref. 11781): Provides watertight installation when mounted on a flat surface.
-
Adaptation Kits Available:
- For Goïot P 1077 column (Ref. 11466)
- Whitlock barrel option for compensable version (Ref. 42131)
Construction & Materials:
- Robust Design: Available with two barrel choices (height 96 mm, Ø 175 mm), built from marine-grade white plastic (Ref. 10301).
- Engineered for Harsh Conditions: Built to resist UV rays, water ingress (when flush-mount kit is used), and the physical demands of offshore use.
The Plastimo Olympic® 135 is the compass of choice for helmsmen who demand visibility, precision, and rugged reliability at sea — making it a true companion for both cruising and competitive sailing.
General Specification
No specifications available.
