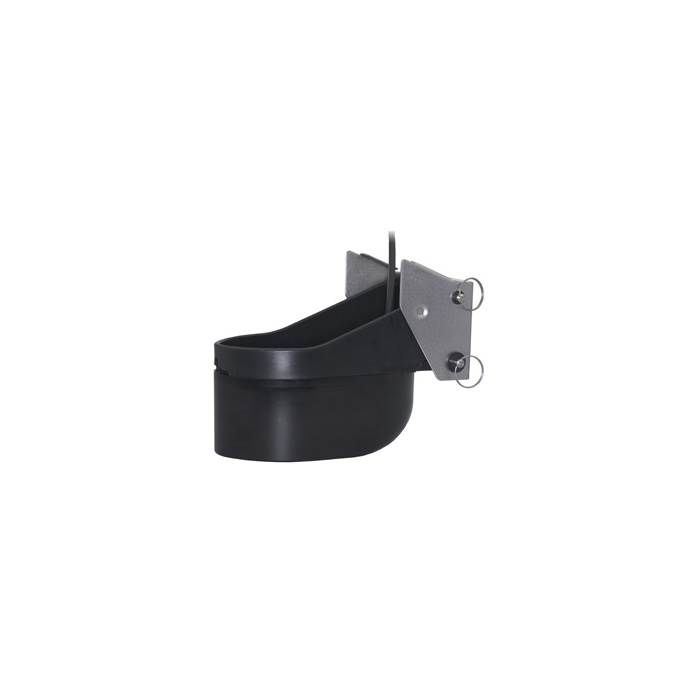

Transducer XSONIC AIRMAR TM185M
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description
Description
This economical Chirp transducer is designed for offshore fishing and freshwater anglers. Operating at a frequency range of 85-135 kHz, these transducers reveal fish in shallow, murky waters at medium depths (up to 1,500 feet*) along with ultra-clear target resolution.
Key features
• Depth and fast-response water-temperature sensor
• 1 kW with a maximum depth of 457 m (1,500')
• Medium frequency: 85 to 135 kHz
• 16° to 11° beamwidth
• 50 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
• Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation
• Transom-mount, urethane housing with a stainless steel bracket for installation on outboard and I/O powered boats
• Exclusive Xducer ID® technology
General Specification
| Weight | 4.2 kg (9.2 lb.) |
| Recommended Boat Length | Up to 10 m (32') |
| Transom Angle | 3° to 21° |
| Acoustic Window | Urethane |
| Includes | Adjustable, stainless steel bracket and mounting hardware |
| Transducer Element | One internal broadband ceramic assembly |
