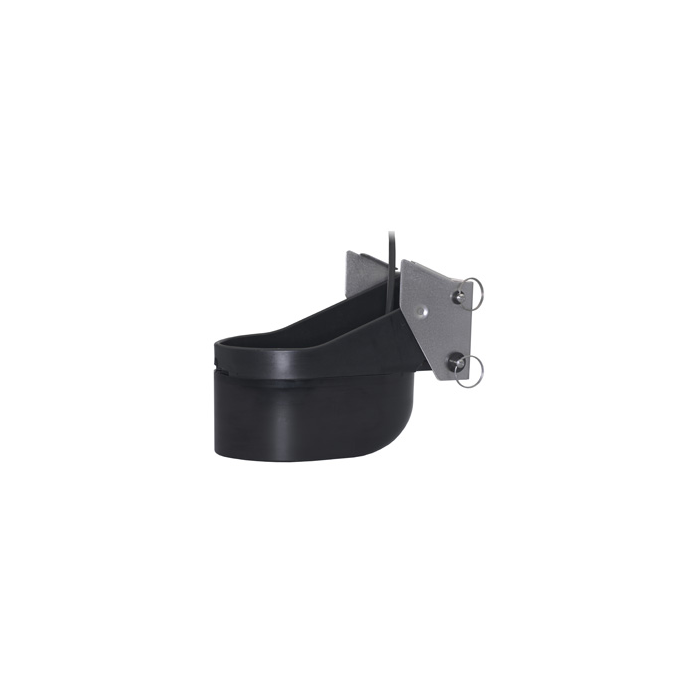

Transducer XSONIC AIRMAR TM185
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description
Transducer XSONIC AIRMAR TM185 HW wide beam
Key features
• Depth and fast-response water-temperature sensor
• 1 kW with a maximum depth of 152 m (500')
• High frequency: 150 to 250 kHz
• Constant 25° beamwidth
• 100 kHz of total bandwidth from one transducer
• Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
• High-frequency band yields excellent shallow to mid-depth performance, bottom detail, and fish-target separation
• High wide beamwidth delivers more coverage for detecting fish in the upper-water column
• Urethane transom transducer
• Stainless steel bracket for installation on outboard and I/O powered boats
• Recommended for use on planing and displacement hulls
• Exclusive Xducer ID® technology
General Specification
| Weight | 4.2 kg (9.2 lb.) |
| Recommended Boat Length | Up to 10 m (32') |
| Transom Angle | 3° to 21° |
| Acoustic Window | Urethane |
| Includes | Adjustable, stainless steel bracket and mounting hardware |
| Transducer Element | One internal broadband ceramic assembly |
