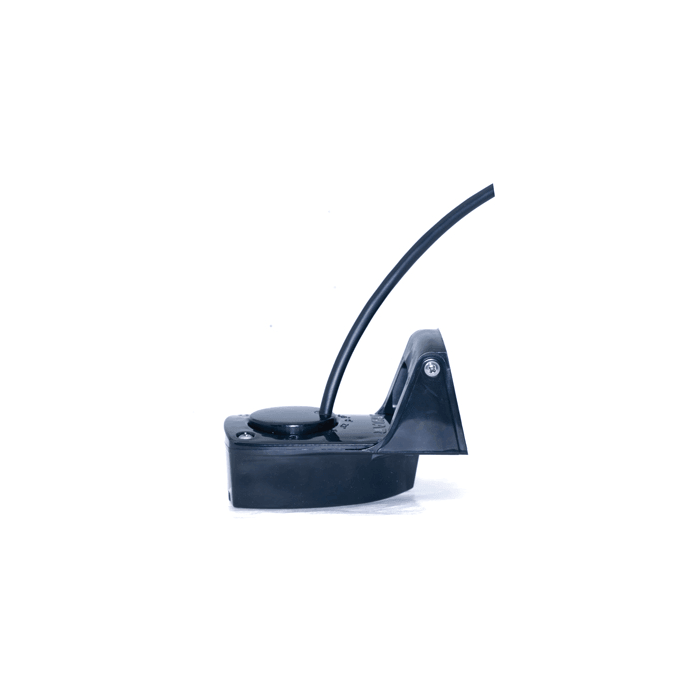

Transducer Transom Mount TM150M
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description
Description
The TM150M delivers a great combination of shallow and deep-water performance. Operating at a frequency range of 95 to 155 kHz, this transducer reveals fish in shallow waters and deeper depths down to 183 m (600') with ultra-clear target resolution. The TM150M is an excellent choice for freshwater and saltwater boats up to 8 m (25').
Features
• Depth and fast-response water-temperature sensor
• 300 W with depth performance to 183 m (600')
• Medium frequency: 95 to 155 kHz
• 26° to 17° beamwidth put more energy on targets for great target separation
• 60 kHz of total bandwidth from one transducer ideal for inshore or coastal fishing
• Narrow beam angles are perfect for detecting fish holding close to structures and suspended fish
• Ideal for freshwater, inshore or coastal fishing in shallow to medium depths
• Plastic release bracket protects housing from frontal impact
• Recommended for outboard and I/O powered boats
• Recommended for planing hulls
General Specification
| Weight | 0.45 kg (1.1 lb.) |
| Recommended Boat Length | Up to 8 m (25') |
| Transom Angle | 3° to 20° |
| Acoustic Window | Urethane |
| Includes | Plastic transom bracket and mounting hardware |
| Transducer Element | One internal broadband ceramic assembly |
