Transducer XSONIC AIRMAR P66 50 kHz/200 kHz
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description
Description

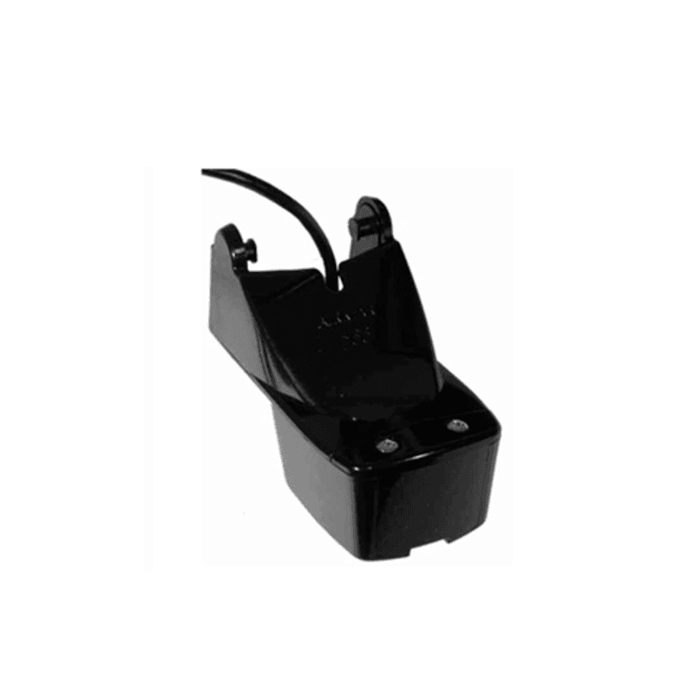

The P66 transom-mount features 50/200 kHz, dual-frequency, single, ceramic element. This hydrodynamic housing with its rounded nose reduces the turbulence under the transducer’s acoustic face for accurate high-speed readings and clear display images.
Features
• Depth, speed, and temperature
• 600 W Dual-frequency element
• 50 kHz with a 45° beamwidth for depth performance to 353 m (1,200')
• 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
• Recessed water-flow channel protects paddlewheel from obstructions
• Plastic release bracket protects sensor from frontal impact
• Sensor can be removed from bracket without tools for easy service or storage
• Chemical and impact-resistant plastic housing
General Specification
| Weight | 0.5 kg (1.1 lb.) |
| Recommended Boat Length | Up to 8 m (25') |
| Transom Angle | 2° to 22° |
| Acoustic Window | Layered plastic urethane (LPU) |
| Speed Performance | Up to 44 knots (50 mph) |
