Transducer XSONIC AIRMAR TM260
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description
Description

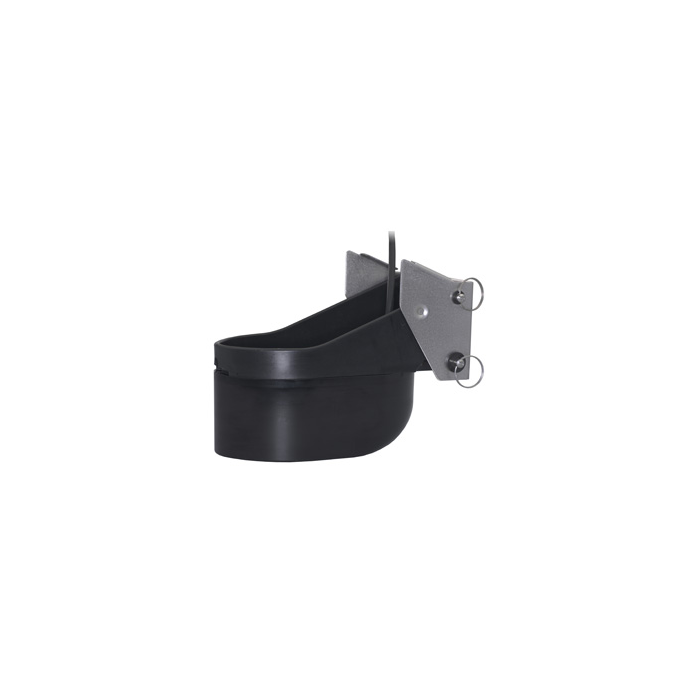

The TM260 is a urethane, transom-mounted broadband transducer, ideal for smaller sportfishing and commercial vessels 25ft and up, fishing in depths down to 3000ft.
Features
• Depth and fast-response water-temperature sensor
• 1 kW
• Dual-frequency element:
• 50 kHz with a 19° beamwidth for depth performance to 800 m (2,600')
• 200 kHz with a 6° beamwidth for depth performance to 294 m (1,000')
• Available with a diplexer for single-transmission-line fishfinders and without a diplexer for dual transmission-line fishfinders
• Urethane transom transducer for installation on outboard and I/O powered boats
• Stainless steel kick-up bracket locks in the “up” position and will not damage the transom
General Specification
| Weight | 4 kg (8.9 lb.) |
| Recommended Boat Length | 10 m (32') and up |
| Hull Deadrise | Up to 28° |
| Transom Angle | 3° to 21° |
| Acoustic Window | Urethane |
| Speed Performance | Up to 35 MPH |
