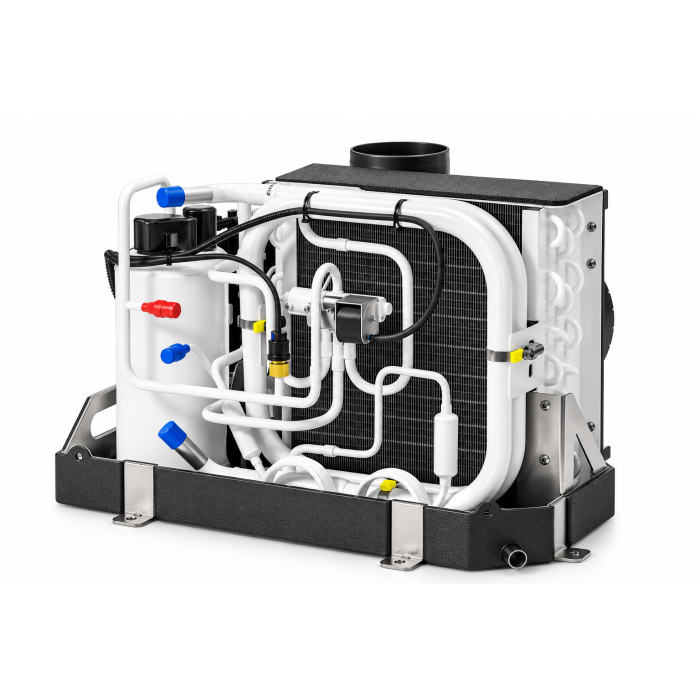

Air Conditioner Self-Contained BlueCool SX8 8,000 BTU/h 230V AC 50/60Hz R32 Reverse Cycle

Air Conditioner Self-Contained BlueCool SX8 8,000 BTU/h 230V AC 50/60Hz R32 Reverse Cycle
AED 14,108.00 Excl. tax

Stock Status: Out of stock

EEPN 05.01.0036 | OEM 2511155A

Download Document

document-text

Description

Marine air conditioning needs to provide comfort without taking over valuable cabin space. The self-contained BlueCool SX-Series brings the cooling system together in a compact unit and adds reverse-cycle operation for heating. Across the range, a titanium condenser provides corrosion resistance, R32 serves as the refrigerant, and the colour MyTouch touchscreen gives each unit its own control interface.

The SX8 delivers 8,000 BTU/h of cooling and 8,800 BTU/h of heating. It shares the 405 × 320 × 315 mm unit dimensions of the SX6 while offering the next step up in rated capacity. The 230V single-phase model operates at either 50 or 60Hz, allowing it to work with the specified onboard AC supply.

Key features

  • Cooling capacity: 8,000 BTU/h; reverse-cycle heating capacity: 8,800 BTU/h.
  • 230V AC, single phase, 50/60Hz.
  • R32 refrigerant and corrosion-resistant titanium condenser.
  • Insulated stainless-steel tray and individual controls with colour MyTouch display.
  • Free-blowing fan output: 275 m³/h.
  • Seawater connection: 16 mm; minimum seawater flow at 50Hz: 8 LPM.
cog

General Specification

Part Number05.01.0036
OEM Number2511155A
ModelSX8
SeriesBlueCool SX-Series
Cooling Capacity8,000 BTU/h (0.66 TR; 2.3 kW)
Heating Capacity8,800 BTU/h (2.6 kW)
Voltage230V AC
Frequency50/60 Hz
Dimensions405 × 320 × 315 mm
Weight23.5 kg
RefrigerantR32
Condenser Cooling MethodSeawater-cooled
Capacity ControlFixed speed
Operating ModeReverse cycle
FunctionsCooling and heating
Condenser MaterialTitanium
