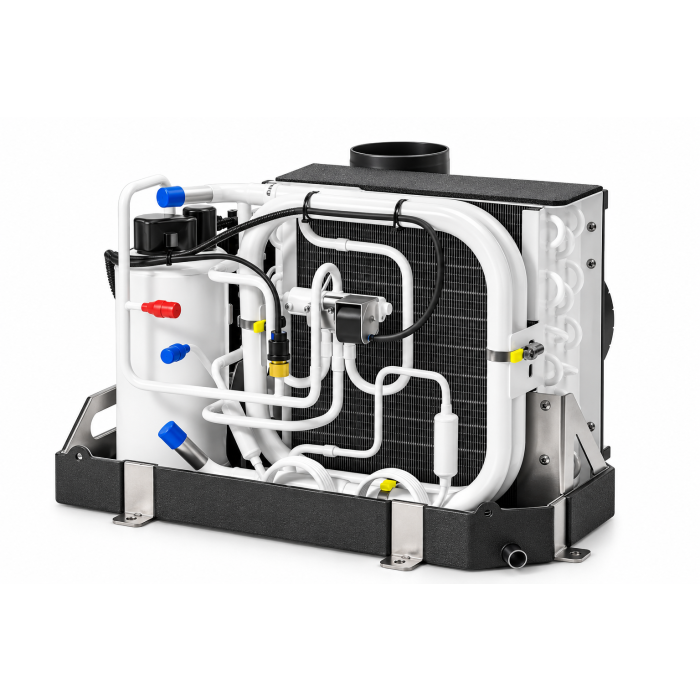

Air Conditioner Self-Contained BlueCool SX20 20,000 BTU/h 230V AC 50/60Hz R32 Reverse Cycle

Air Conditioner Self-Contained BlueCool SX20 20,000 BTU/h 230V AC 50/60Hz R32 Reverse Cycle
AED 18,782.00 Excl. tax

Stock Status: Out of stock

EEPN 05.01.0040 | OEM 2511159A

Download Document

document-text

Description

The self-contained BlueCool SX-Series offers individual cabin cooling and reverse-cycle heating through units with their own control electronics. The range combines R32 refrigerant with a titanium condenser for corrosion resistance, and mounts the system on an insulated stainless-steel tray. A colour MyTouch touchscreen gives access to the air-conditioning controls, while 50/60Hz compatibility supports the specified 230V AC installation.

The SX20 provides 20,000 BTU/h of cooling and 23,000 BTU/h of heating. Its free-blowing fan output is 625 m³/h, with a 19 mm seawater connection and a minimum seawater flow of 17 LPM at 50Hz. This is the second-highest cooling capacity in the seven-model 230V SX range.

Key features

  • Cooling capacity: 20,000 BTU/h; reverse-cycle heating capacity: 23,000 BTU/h.
  • 230V AC, single phase, 50/60Hz.
  • R32 refrigerant and corrosion-resistant titanium condenser.
  • Insulated stainless-steel tray and individual controls with colour MyTouch display.
  • Free-blowing fan output: 625 m³/h.
  • Seawater connection: 19 mm; minimum seawater flow at 50Hz: 17 LPM.
cog

General Specification

Part Number05.01.0040
OEM Number2511159A
ModelSX20
SeriesBlueCool SX-Series
Cooling Capacity20,000 BTU/h (1.66 TR; 5.9 kW)
Heating Capacity23,000 BTU/h (6.7 kW)
Voltage230V AC
Frequency50/60 Hz
Dimensions590 × 340 × 370 mm
Weight36 kg
RefrigerantR32
Condenser Cooling MethodSeawater-cooled
Capacity ControlFixed speed
Operating ModeReverse cycle
FunctionsCooling and heating
Condenser MaterialTitanium
