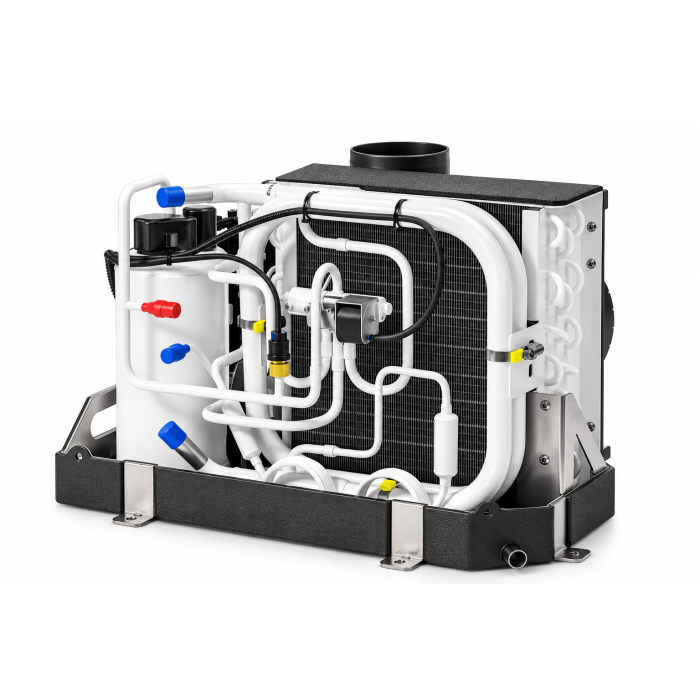

Air Conditioner Self-Contained BlueCool SX6 6,000 BTU/h 230V AC 50/60Hz R32 Reverse Cycle

Air Conditioner Self-Contained BlueCool SX6 6,000 BTU/h 230V AC 50/60Hz R32 Reverse Cycle
AED 13,254.00 Excl. tax

Stock Status: Out of stock

EEPN 05.01.0035 | OEM 2511154A

Download Document

document-text

Description

The BlueCool SX-Series provides self-contained air conditioning for individual cabins, with each installed unit operating through its own controls. The range combines cooling and reverse-cycle heating in a compact marine system. R32 refrigerant works with a titanium condenser, while an insulated stainless-steel tray supports the unit. Temperature and system settings are accessible through the colour MyTouch display.

The SX6 is the 6,000 BTU/h model in the 230V range, providing 6,500 BTU/h of reverse-cycle heating. Its free-blowing fan output is 275 m³/h, and the unit measures 405 × 320 × 315 mm. It brings the core features of the SX-Series to the smallest cooling capacity available in this range.

Key features

  • Cooling capacity: 6,000 BTU/h; reverse-cycle heating capacity: 6,500 BTU/h.
  • 230V AC, single phase, 50/60Hz.
  • R32 refrigerant and corrosion-resistant titanium condenser.
  • Insulated stainless-steel tray and individual controls with colour MyTouch display.
  • Free-blowing fan output: 275 m³/h.
  • Seawater connection: 16 mm; minimum seawater flow at 50Hz: 6 LPM.
cog

General Specification

Part Number05.01.0035
OEM Number2511154A
ModelSX6
SeriesBlueCool SX-Series
Cooling Capacity6,000 BTU/h (0.5 TR; 1.8 kW)
Heating Capacity6,500 BTU/h (1.9 kW)
Voltage230V AC
Frequency50/60 Hz
Dimensions405 × 320 × 315 mm
Weight20.5 kg
RefrigerantR32
Condenser Cooling MethodSeawater-cooled
Capacity ControlFixed speed
Operating ModeReverse cycle
FunctionsCooling and heating
Condenser MaterialTitanium
