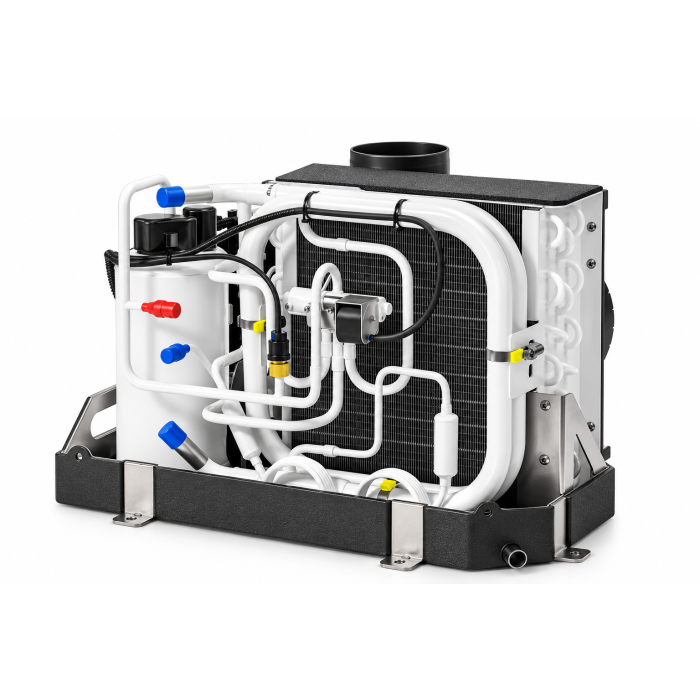

Air Conditioner Self-Contained BlueCool SX10 10,000 BTU/h 230V AC 50/60Hz R32 Reverse Cycle

Air Conditioner Self-Contained BlueCool SX10 10,000 BTU/h 230V AC 50/60Hz R32 Reverse Cycle
AED 15,007.00 Excl. tax

Stock Status: Out of stock

EEPN 05.01.0037 | OEM 2511156A

Download Document

document-text

Description

The BlueCool SX-Series is built around independently controlled, self-contained air-conditioning units for marine cabins. Its reverse-cycle design provides heating as well as cooling, so the same system can serve changing onboard conditions. R32 refrigerant, a titanium condenser and an insulated stainless-steel tray form part of the series design, with operation through the colour MyTouch touchscreen.

At 10,000 BTU/h of cooling, the SX10 sits between the smaller SX6 and SX8 units and the higher-capacity SX13 to SX27 models. It also provides 11,200 BTU/h of reverse-cycle heating. A free-blowing fan output of 500 m³/h distinguishes it from the two smaller 230V units, while its own electronics allow individual cabin control.

Key features

  • Cooling capacity: 10,000 BTU/h; reverse-cycle heating capacity: 11,200 BTU/h.
  • 230V AC, single phase, 50/60Hz.
  • R32 refrigerant and corrosion-resistant titanium condenser.
  • Insulated stainless-steel tray and individual controls with colour MyTouch display.
  • Free-blowing fan output: 500 m³/h.
  • Seawater connection: 16 mm; minimum seawater flow at 50Hz: 10 LPM.
cog

General Specification

Part Number05.01.0037
OEM Number2511156A
ModelSX10
SeriesBlueCool SX-Series
Cooling Capacity10,000 BTU/h (0.83 TR; 2.9 kW)
Heating Capacity11,200 BTU/h (3.3 kW)
Voltage230V AC
Frequency50/60 Hz
Dimensions480 × 335 × 315 mm
Weight24 kg
RefrigerantR32
Condenser Cooling MethodSeawater-cooled
Capacity ControlFixed speed
Operating ModeReverse cycle
FunctionsCooling and heating
Condenser MaterialTitanium
