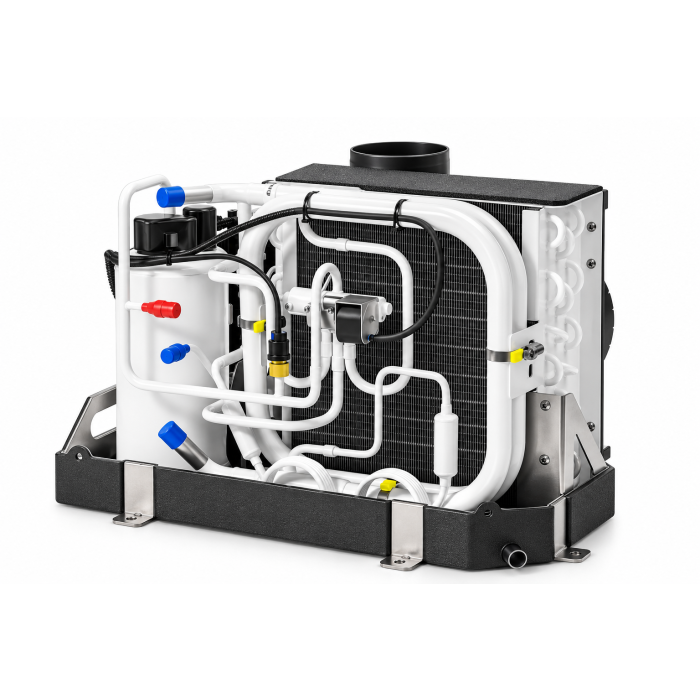

Air Conditioner Self-Contained BlueCool SX13 13,000 BTU/h 230V AC 50/60Hz R32 Reverse Cycle

Air Conditioner Self-Contained BlueCool SX13 13,000 BTU/h 230V AC 50/60Hz R32 Reverse Cycle
AED 16,086.00 Excl. tax

Stock Status: Out of stock

EEPN 05.01.0038 | OEM 2511157A

Download Document

document-text

Description

With the BlueCool SX-Series, each cabin can have its own self-contained air-conditioning unit rather than depending on a shared control setting. The series pairs cooling with reverse-cycle heating and uses R32 refrigerant. A titanium condenser offers corrosion resistance for marine use, while the colour MyTouch display provides local touchscreen control and access to system settings.

The SX13 supplies 13,000 BTU/h of cooling and 13,300 BTU/h of heating in the 230V range. Its free-blowing fan output is 580 m³/h, and it uses a 19 mm seawater connection. The unit measures 510 × 350 × 370 mm, providing a clear set of dimensions for installation planning.

Key features

  • Cooling capacity: 13,000 BTU/h; reverse-cycle heating capacity: 13,300 BTU/h.
  • 230V AC, single phase, 50/60Hz.
  • R32 refrigerant and corrosion-resistant titanium condenser.
  • Insulated stainless-steel tray and individual controls with colour MyTouch display.
  • Free-blowing fan output: 580 m³/h.
  • Seawater connection: 19 mm; minimum seawater flow at 50Hz: 12 LPM.
cog

General Specification

Part Number05.01.0038
OEM Number2511157A
ModelSX13
SeriesBlueCool SX-Series
Cooling Capacity13,000 BTU/h (1.08 TR; 3.8 kW)
Heating Capacity13,300 BTU/h (3.9 kW)
Voltage230V AC
Frequency50/60 Hz
Dimensions510 × 350 × 370 mm
Weight28.2 kg
RefrigerantR32
Condenser Cooling MethodSeawater-cooled
Capacity ControlFixed speed
Operating ModeReverse cycle
FunctionsCooling and heating
Condenser MaterialTitanium
