Air Conditioner Self-Contained BlueCool SX16 16,000 BTU/h 230V AC 50/60Hz R32 Reverse Cycle

Air Conditioner Self-Contained BlueCool SX16 16,000 BTU/h 230V AC 50/60Hz R32 Reverse Cycle
AED 17,254.00 Excl. tax

Stock Status: Out of stock

EEPN 05.01.0039 | OEM 2511158A

Download Document

document-text

Description

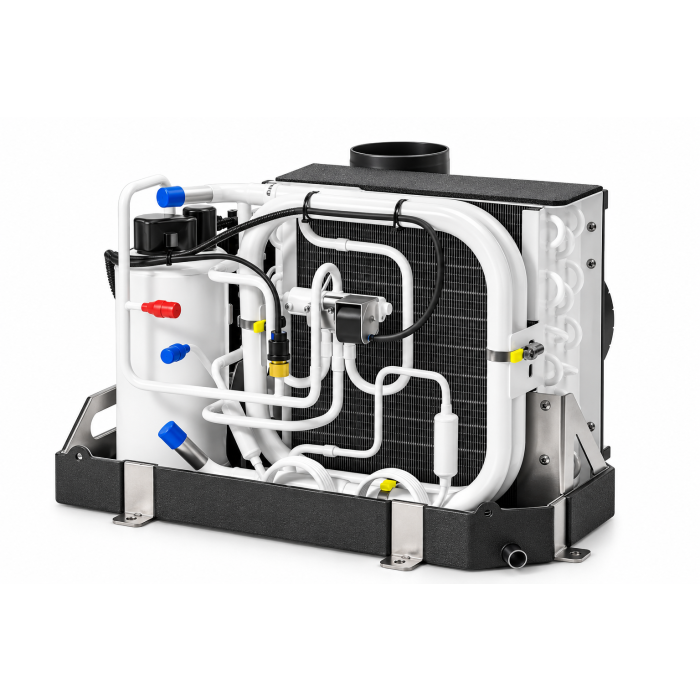

The BlueCool SX-Series combines the main functions of marine air conditioning in a self-contained unit for an individual cabin. Reverse-cycle operation adds heating to its cooling capability. The series uses R32 refrigerant, a corrosion-resistant titanium condenser and an insulated stainless-steel condensate tray; each unit has separate control electronics and a colour MyTouch display.

The SX16 raises rated cooling capacity to 16,000 BTU/h and provides 18,400 BTU/h of heating. Its fan delivers 625 m³/h of free-blowing air output. With 230V single-phase, 50/60Hz operation, it retains the electrical flexibility and individual control offered across the 230V SX models.

Key features

  • Cooling capacity: 16,000 BTU/h; reverse-cycle heating capacity: 18,400 BTU/h.
  • 230V AC, single phase, 50/60Hz.
  • R32 refrigerant and corrosion-resistant titanium condenser.
  • Insulated stainless-steel tray and individual controls with colour MyTouch display.
  • Free-blowing fan output: 625 m³/h.
  • Seawater connection: 19 mm; minimum seawater flow at 50Hz: 14 LPM.
cog

General Specification

Part Number05.01.0039
OEM Number2511158A
ModelSX16
SeriesBlueCool SX-Series
Cooling Capacity16,000 BTU/h (1.33 TR; 4.7 kW)
Heating Capacity18,400 BTU/h (5.4 kW)
Voltage230V AC
Frequency50/60 Hz
Dimensions550 × 350 × 370 mm
Weight32 kg
RefrigerantR32
Condenser Cooling MethodSeawater-cooled
Capacity ControlFixed speed
Operating ModeReverse cycle
FunctionsCooling and heating
Condenser MaterialTitanium
