SCM-LC-N2K Marine RGB Lighting Controller – NMEA 2000 – Multi-Zone

Shadow-Caster LED Lighting SCM-LC-N2K Marine RGB Lighting Controller – NMEA 2000 – Multi-Zone

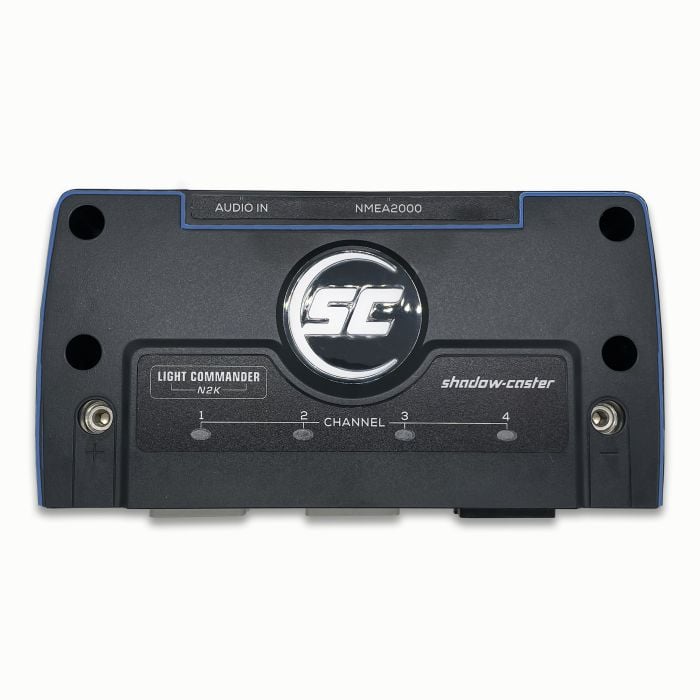

The Shadow-Caster SCM-LC-N2K Light Commander is a multi-zone marine lighting controller designed for seamless integration with NMEA 2000 systems. Built in compliance with the latest lighting control standards, it enables precise control and customisation of onboard LED lighting through compatible multifunction displays (MFDs).

Capable of managing up to 6 lighting zones per module, with expandability across additional units, the system supports RGB and RGBW lighting with advanced scene control, including colour transitions, dimming, strobe and music synchronisation.

Key Features

• NMEA 2000 connectivity for seamless system integration
• Controls up to 6 lighting zones (expandable across multiple modules)
• Supports RGB and RGBW lighting systems
• Global and zone-based lighting control
• Pre-set and custom lighting scenes, including fade, colour change and strobe
• Built-in inputs for direct switch control (instant-on functionality)
• Optional wireless control via compatible modules

Additional Features

• IP67-rated housing with waterproof connections
• Deutsch-style connectors for clean OEM installations
• Integrated over-current protection (15A per channel)
• Built-in audio input for music synchronisation
• Backlit indicators for system status and zone identification
• Compatible with leading MFD brands including Simrad, Garmin, Raymarine and Furuno
