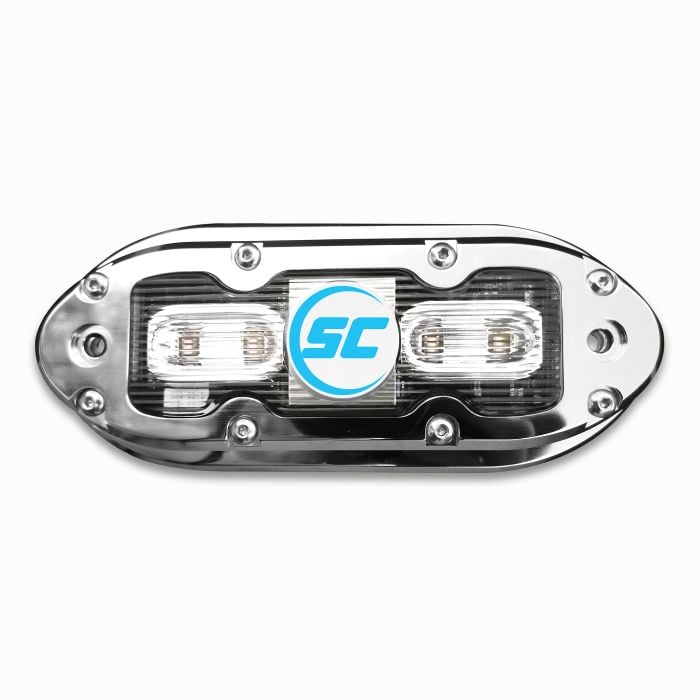

SCM-4 Underwater Light - 316L Stainless Steel - Bimini Blue - 1600 Lumens

SCM-4 Underwater Light - 316L Stainless Steel - Bimini Blue - 1600 Lumens
Shadow-Caster LED Lighting
AED 1,375.00 Excl. tax

Stock Status: In stock

EEPN 09.03.0600 | OEM SCM-4-BB-20

Download Document

Datasheet
document-text

Description

Shadow-Caster LED Lighting SCM-4-BB-20 Underwater Light – 316L Stainless Steel – Bimini Blue – 1600 Lumens

The Shadow-Caster SCM-4 is a compact, low-profile underwater marine light delivering up to 17 watts of LED illumination. Its slim design allows for flexible mounting across a variety of locations on the vessel.

Constructed with a passivated 316 stainless steel housing and a durable polycarbonate lens, the SCM-4 is built to perform reliably in demanding marine environments. It is available in multiple single colour options, making it well suited for trailer or lift-kept boats.

Key Features

  • Up to 1,600 lumens output with a 120° beam angle
  • Low-profile design for versatile mounting
  • 316 stainless steel housing for corrosion resistance
  • Polycarbonate lens for durability
  • Gel-filled, sealed construction to prevent water ingress
  • Reverse polarity and surge protection for extended lifespan
  • Thermal protection for safe operation even out of water
  • IP68 rated and backed by a 3-year warranty
cog

General Specification

Part Number 09.03.0600
Product Code SCM-4-BB-20
Colour Type Single Colour
Colour Bimini Blue
Housing Type 316L Stainless Steel
Lumens (Max) 1600
Beam Angle 120°
Power Draw 17W
Input Voltage 10-30V DC
Dimensions 5.8” (148 mm) x 2.4”(61mm) x 0.5” (13mm)
Warranty 3 years
IP Rating IP68
Operating Current Draw 1.4 amps @ 12 volts
