SCM-DL 2” Marine LED Downlight - White Housing - 12-24V DC - Great White - 300 Lumens
Download Document
Description

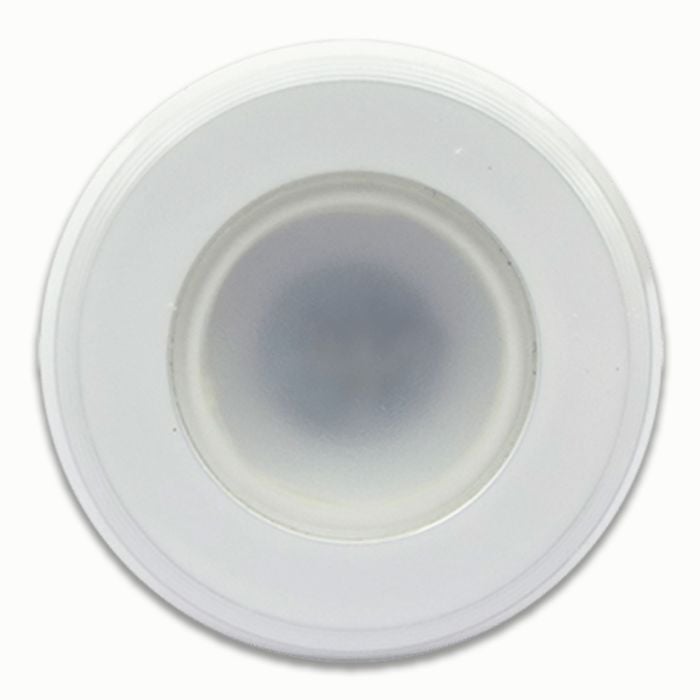

Shadow-Caster LED Lighting SCM-DL-GW-WH 2” Marine LED Downlight – White Housing – 12-24V DC – Great White – 300 Lumens
The Shadow-Caster SCM-DL is a compact marine LED down light designed for overhead illumination across both interior and exterior areas of a vessel. With a 2″ profile and wide beam spread, it is well suited for T-tops, cabins, towers and general onboard lighting.
Available in multiple configurations including single colour, dual colour, tri-colour and full colour variants, the SCM-DL offers flexible lighting control through simple switching or integration with Shadow-NET® systems. Offered in white or black finishes, it blends seamlessly into a variety of marine installations.
Key Features
- 300 lumens output with a wide 120° beam angle
- Compact 2″ low-profile design for overhead installation
- Available in single, dual, tri-colour and full colour options
- Soft-start technology for gradual brightness increase
- Power toggle control for colour and brightness adjustment
- True white LED for accurate colour output
- Aluminium housing with durable glass lens
- High-efficiency power supply for stable performance
- IP67 rated and backed by a 3-year warranty
General Specification
| Part Number | 09.05.0779 |
| Product Code | SCM-DL-GW-WH |
| Colour Type | Single Colour |
| Colour | Great White |
| Housing Colour | White |
| Range | SCM-DL Series |
| Lumens | 300 |
| Beam Angle | 120° |
| Input Voltage | 10-30V DC |
| Power Draw | 3W |
| Current Draw | 250mA @ 12 volts; 125mA @ 24 volts |
| IP Rating | IP67 |
| Warranty | 3 years |
