SCM-10-EXT Underwater Light - 316L Stainless Steel - Colour Changing - 3750 Lumens
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description

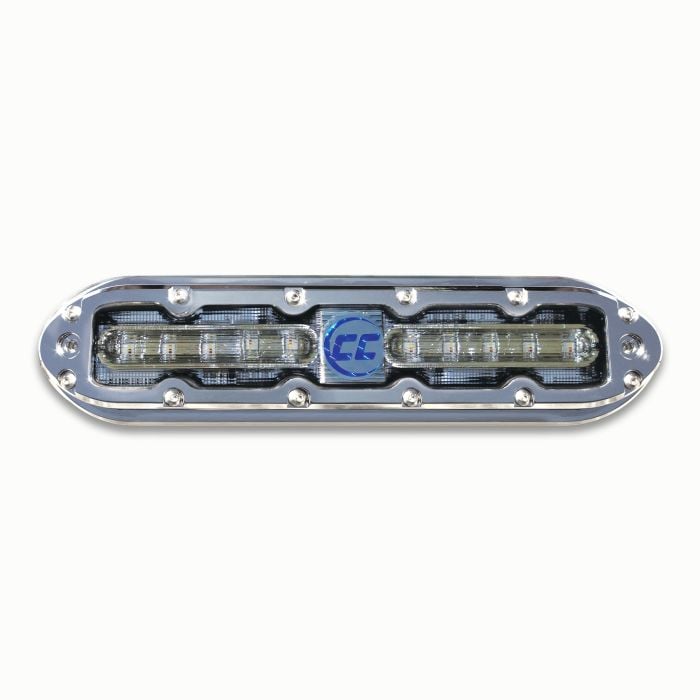

Shadow-Caster LED Lighting SCM-10-EXT-CC-20 Underwater Light – 316L Stainless Steel – Colour Changing – 3750 Lumens
The Shadow-Caster SCM-10-EXT-CC is a low-profile underwater marine light delivering up to 42 watts of LED illumination with extended colour capabilities. Designed for flexible installation, its slim form allows for a wide range of mounting positions.
Equipped with RGBW LEDs, it offers 12 built-in colours via simple switching, with the option to unlock unlimited colour control when integrated with Shadow-NET® systems. The 316 stainless steel housing and polycarbonate lens ensure durability in demanding marine environments.
Key Features
- Up to 3,750 lumens output with a 120° beam angle
- Low-profile design for versatile mounting
- RGBW LEDs with 12 built-in colours
- Unlimited colour control when paired with Shadow-NET®
- 316 stainless steel housing for corrosion resistance
- Polycarbonate lens for durability
- Gel-filled, sealed construction to prevent water ingress
- Reverse polarity and surge protection for extended lifespan
- Thermal protection for safe operation even out of water
- IP68 rated and backed by a 3-year warranty
General Specification
| Part Number | 09.03.0597 |
| Product Code | SCM-10-EXT-CC-20 |
| Colour Type | Colour Changing |
| Colour | Colour Changing |
| Housing Type | 316L Stainless Steel |
| Lumens (Max) | 3750 |
| Beam Angle | 120° |
| Power Draw | 42W |
| Input Voltage | 10-30V DC |
| Dimensions | 10” (254 mm) x 2.4” (61mm) x 0.5” (13mm) |
| Warranty | 3 years |
| IP Rating | IP68 |
| Operating Current Draw | 3.5 amps @ 12 volts |
