Eagle Ray Marine LED Light Bar – 20,000 Lumens – Adjustable Spot/Flood – 12–24V – White

Eagle Ray Marine LED Light Bar – 20,000 Lumens – Adjustable Spot/Flood – 12–24V – White
Shadow-Caster LED Lighting
AED 10,663.00 Excl. tax

Stock Status: In stock

EEPN 09.06.0102 | OEM SCM-EAGLE-RAY-WH

Download Document

Datasheet
document-text

Description

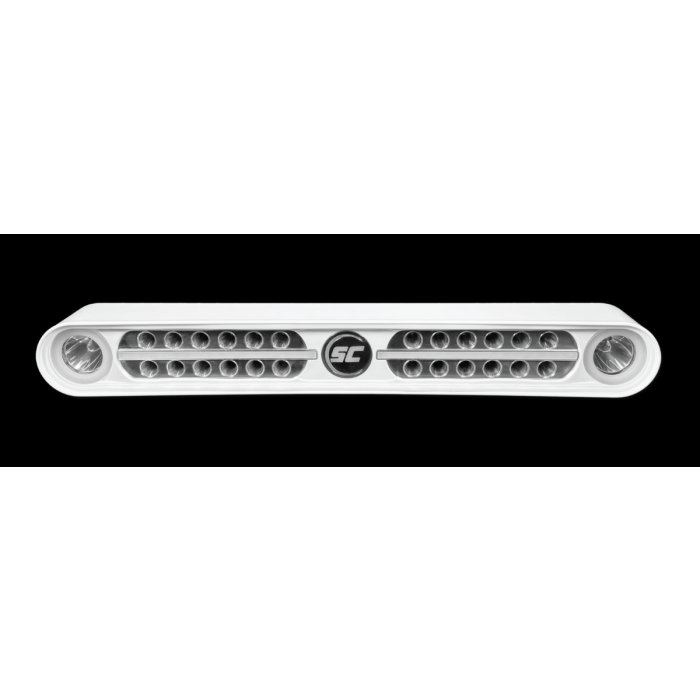

Shadow-Caster LED Lighting SCM-EAGLE-RAY-WH Marine LED Light Bar – 20,000 Lumens – Adjustable Spot/Flood – 12–24V – White

The Shadow-Caster Eagle Ray is a high-performance marine light bar combining focused laser-driven beams with a wide LED flood array for enhanced visibility in demanding conditions.

Designed using automotive lighting technology, it delivers long-distance illumination alongside broad-area coverage, making it suitable for navigation in low visibility environments such as fog, rain and mist. Beam angle and brightness can be adjusted via a switch or integrated through Shadow-Caster® NMEA 2000 systems.

Key Features

  • Combination of laser-driven spot beams and 60° LED flood lighting
  • Up to 20,000 lumens output for high-intensity illumination
  • Adjustable beam angle (5–100°) for focused or wide coverage
  • Variable brightness control via switch or MFD interface
  • Blue halo and accent lighting for visual status indication
  • Billet aluminium housing in white or black finish
  • Borosilicate glass lens for durability
  • Remote power trigger for simplified installation
  • Operates on 10–30V systems
cog

General Specification

Part Number 09.06.0102
Product Code SCM-EAGLE-RAY-WH
Housing Color White Powder Coating
Material Billet Aluminium
LEDs Great White
Type Standard Version
Lumens 20000
Beam Angle Adjustable Spot (5°–100°) + Fixed Flood (60°)
Input Voltage 10-30V DC
Max Power 200W
Operating Current Draw 16.5 amps @ 12V
Warranty 3 years
Dimensions (H x W x D) - in mm 65.3 x 506.5 x 136.9
