SCM-10 Underwater Light - 316L Stainless Steel - Great White - 4000 Lumens
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description

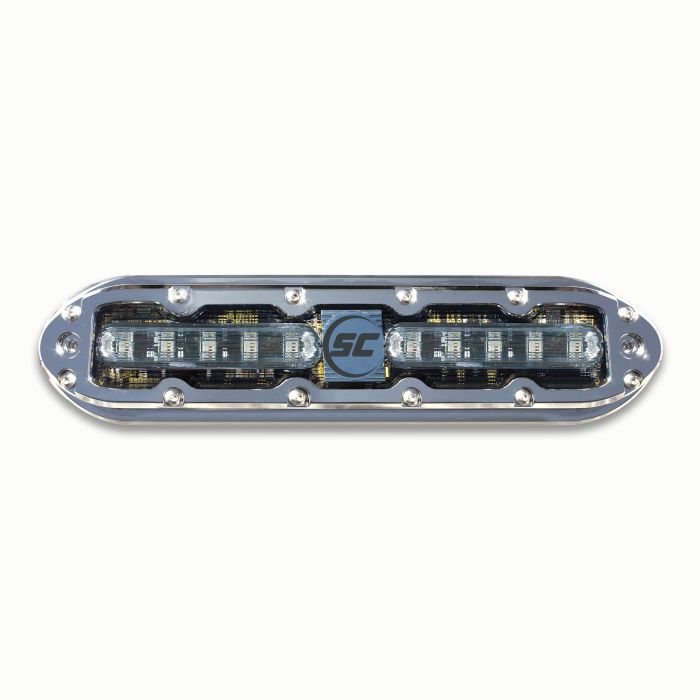

Shadow-Caster LED Lighting SCM-10-GW-20 Underwater Light – 316L Stainless Steel – Great White – 4000 Lumens
The Shadow-Caster SCM-10 is a low-profile underwater marine light delivering up to 42 watts of LED illumination. Designed for flexible installation, its slim form factor allows for a wide range of mounting locations.
Constructed with a passivated 316 stainless steel housing and a durable polycarbonate lens, the SCM-10 is built to withstand demanding marine environments. It is available in multiple single colour options, making it a practical choice for trailer or lift-kept boats.
Key Features
- Up to 4,000 lumens output with a 120° beam angle
- Low-profile design for versatile mounting
- 316 stainless steel housing for corrosion resistance
- Polycarbonate lens for durability
- Gel-filled, sealed construction to prevent water ingress
- Reverse polarity and surge protection for extended lifespan
- Thermal protection for safe operation even out of water
- IP68 rated and backed by a 3-year warranty
General Specification
| Part Number | 09.03.0598 |
| Product Code | SCM-10-GW-20 |
| Colour Type | Single Colour |
| Colour | Great White |
| Housing Type | 316L Stainless Steel |
| Lumens (Max) | 4000 |
| Beam Angle | 120° |
| Power Draw | 42W |
| Input Voltage | 10-30V DC |
| Dimensions | 10” (254 mm) x 2.4” (61mm) x 0.5” (13mm) |
| Warranty | 3 years |
| IP Rating | IP68 |
| Operating Current Draw | 3.5 amps @ 12 volts |
