SCR-24 Underwater Light - Bronze - Surface Mount - Blue & White - 10000 Lumens
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description
Shadow-Caster LED Lighting SCR-24-CC-BZ-10 Underwater Light – Bronze – Surface Mount – Colour Changing – 10000 Lumens

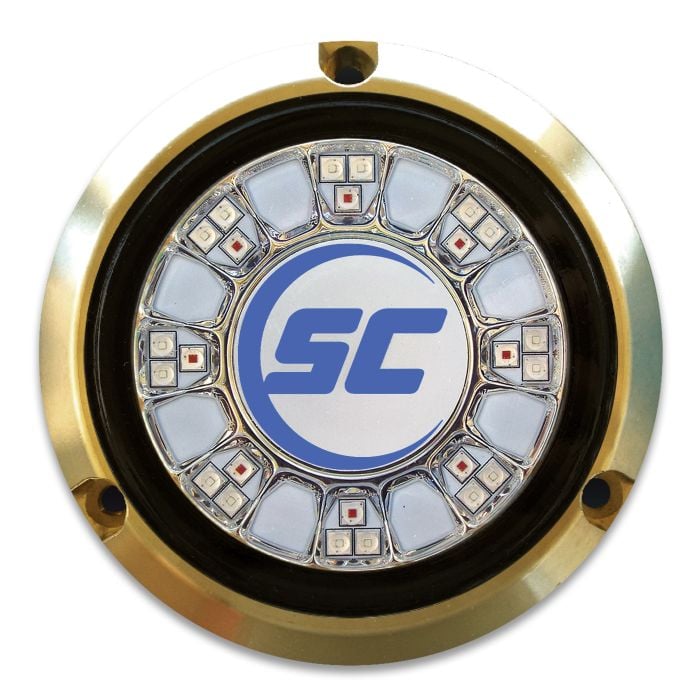

The Shadow-Caster SCR-24 is a compact 24 LED underwater marine light delivering up to 90 watts of high-intensity illumination. Built within a durable 4″ bronze housing, it is designed for reliable under-waterline surface mounting across a wide range of vessels.
Available in single and multi-colour variants, the SCR-24 offers adjustable brightness and flexible control options — from simple switching to advanced integration via Shadow-NET® systems.
Its sealed gel-filled construction, tempered glass lens, and built-in protection systems ensure consistent performance in demanding marine environments.
Key Features
- Up to 7,500 lumens output with a wide 120° beam angle
- Compact 4″ bronze housing for underwater installation
- Gel-filled, fully sealed design to prevent condensation and water ingress
- Tempered glass lens resistant to scratches and harsh chemicals
- Reverse polarity and surge protection for extended lifespan
- Thermal protection for safe operation even out of water
- Compatible with multiple control options, including Shadow-NET®
- IP68 rated and backed by a 3-year warranty
General Specification
| Part Number | 09.03.0609 |
| Product Code | SCR-24-BW-BZ-10 |
| Colour Type | Dual Colour |
| Colour | Blue & White |
| Housing Type | Bronze Surface Mount |
| Lumens (Max) | 10000 |
| Beam Angle | 120° |
| Power Draw | 90W |
| Input Voltage | 10-30V DC |
| OD | 4" (102 mm) |
| Warranty | 3 years |
| IP Rating | IP68 |
| Operating Current Draw | 7.8 amps @ 12 volts; 3.5 amps @ 24 volts |
