SCM-CLX Marine Front Facing Courtesy Light - 316 Stainless Steel Bezel - 12V DC - RGBW
Download Document
Description

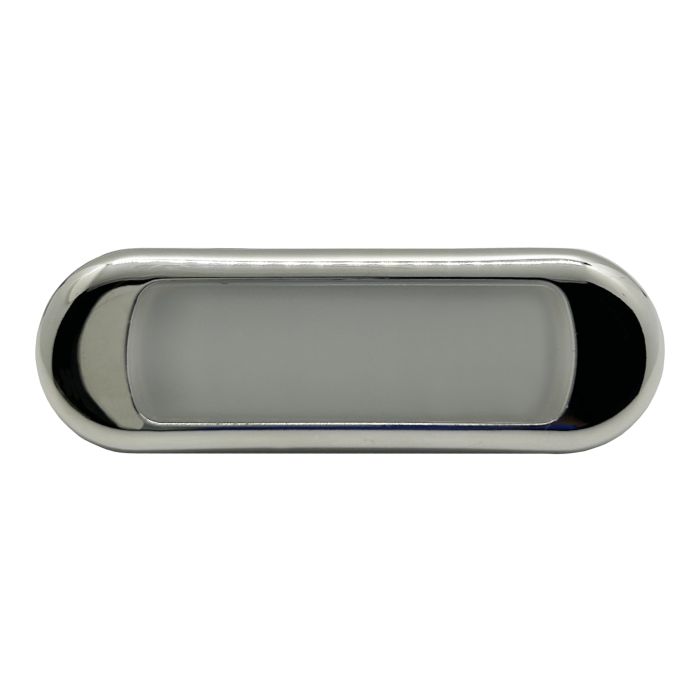

Shadow-Caster LED Lighting SCM-CLX-RGBW-SS Marine Front Facing Courtesy Light – 316 Stainless Steel Bezel – 12V DC – RGBW
The Shadow-Caster SCM-CLX is a front-facing LED courtesy light designed for both accent and functional illumination across a vessel. Its low-profile form and clean finish allow it to integrate seamlessly into steps, compartments, coves and work areas.
Equipped with RGBW output and a dedicated true white channel, the SCM-CLX delivers both ambient lighting and practical visibility where required. The polished stainless steel bezel and durable construction ensure reliable performance in marine environments.
Key Features
- Front-facing design for direct and even illumination
- RGBW output with dedicated true white channel
- Wide beam spread with low-glare performance
- Low-profile, compact design for discreet installation
- Polished 316 stainless steel bezel for a refined finish
- UV-stabilised polycarbonate housing
- IP67 rated and backed by a 3-year warranty
General Specification
| Part Number | 09.05.0809 |
| Product Code | SCM-CLX-RGBW-SS |
| Colour Type | Full Colour |
| Colour | RGBW |
| Housing Colour | 316 Stainless Steel Bezel |
| Series | SCM-CLX |
| Light Output | Up to 80 lumens |
| Current Draw | 300mA |
| Input Voltage | 12V DC |
| Warranty | 3 years |
| Dimensions (in mm) | 76.2 mm x 25.4 mm x 8.13 mm |
| IP Rating | IP67 |
