SCM-RAL RGB Marine Accent Light – Diffused Polymer – 12V – 100 Lumens

SCM-RAL RGB Marine Accent Light – Diffused Polymer – 12V – 100 Lumens
Shadow-Caster LED Lighting
AED 68.00 Excl. tax

Stock Status: In stock

EEPN 09.05.0832 | OEM SCM-RAL-RGB-0.4-PW
SCM-RAL RGB Marine Accent Light – Polycarbonate – Small Round – 12V – 150 Lumens
SCM-RAL RGB Marine Accent Light – Polycarbonate – Small Round – 12V – 150 Lumens
EEPN: 09.05.0830
AED 102.00
In Stock
SCM-RAL Marine Accent Light – Great White – Polycarbonate – Small Round – 12V – 150 Lumens
SCM-RAL Marine Accent Light – Great White – Polycarbonate – Small Round – 12V – 150 Lumens
EEPN: 09.05.0831
AED 98.00
In Stock
SCM-RAL RGB Marine Accent Light – Anodized Aluminum – Panel Mount – 12V
SCM-RAL RGB Marine Accent Light – Anodized Aluminum – Panel Mount – 12V
EEPN: 09.05.0834
AED 90.00
In Stock

Download Document

Datasheet
document-text

Description

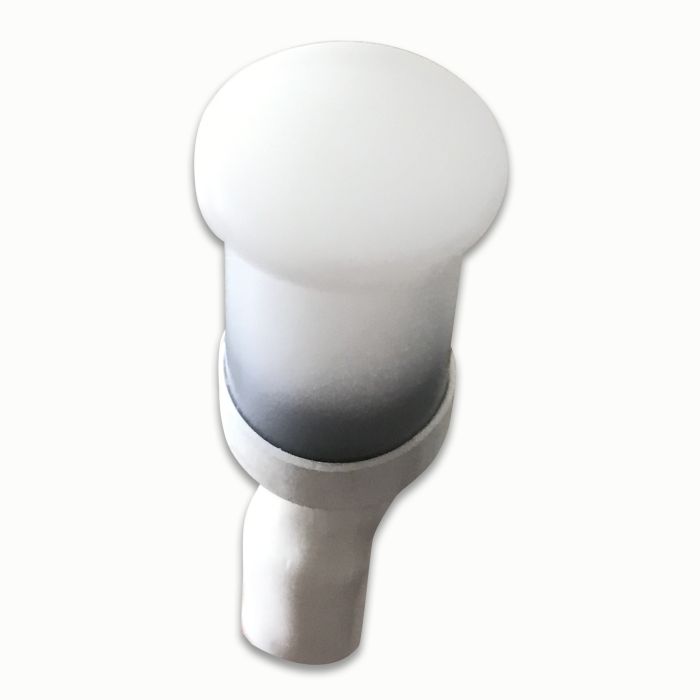

Shadow-Caster LED Lighting SCM-RAL-RGB-0.4-PW RGB Marine Accent Light – Diffused Polymer – 12V – 100 Lumens

The Shadow-Caster SCM-RAL Series consists of compact round LED accent lights designed to illuminate smaller areas across a vessel. Suitable for both functional and ambient lighting, they are ideal for applications such as hatches, cup holders, toe kicks, walkways, map lighting, baitwells and storage areas.

With a range of mounting configurations available, the SCM-RAL Series can be adapted to suit different installation requirements. RGB variants are fully compatible with Shadow-Caster lighting control systems, enabling seamless integration into onboard lighting setups.

Key Features

  • Compact design for small-area illumination
  • Suitable for interior and exterior accent lighting
  • Multiple mounting options for flexible installation
  • Ideal for hatches, walkways, compartments and baitwells
  • Available in single and RGB lighting options
  • Compatible with Shadow-Caster control systems
  • Designed for reliable marine performance
cog

General Specification

Part Number 09.05.0832
Product Code SCM-RAL-RGB-0.4-PW
Colour Type Full Colour
Colour RGB
Material Diffused Polymer White Housing
Voltage 12V
Output (Lumens) 100
Thread None
Recommended Hole Diameter 0.375"
Current Channel 20mA, 60mA total
Lead Wire Length 18"
Recommended Applications Cup holders, hatches & toe kick area lighting
Hardware Included None
IP Rating IP67
