SCM-DLXS 3” Marine LED Downlight - White Housing - 12-24V DC - Warm White - 300 Lumens
Download Document
Description

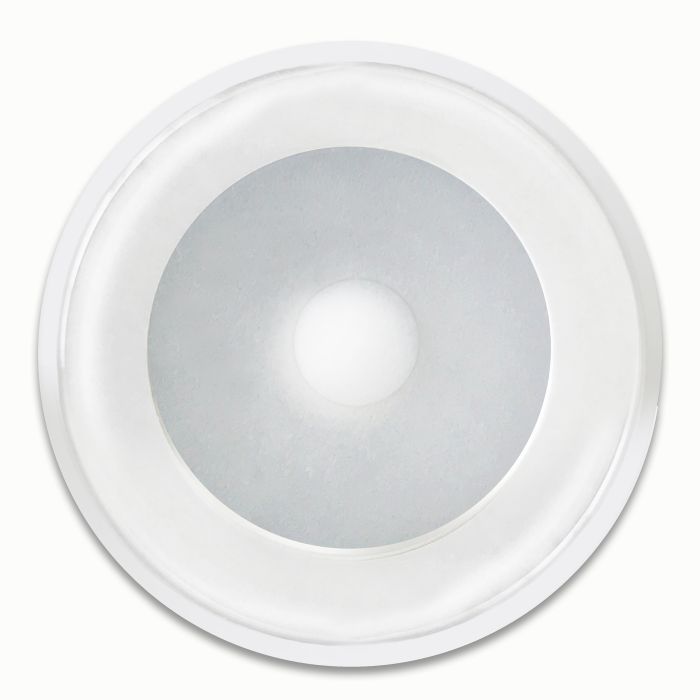

Shadow-Caster LED Lighting SCM-DLXS-WW-WH 3” Marine LED Downlight – White Housing – 12-24V DC – Warm White – 300 Lumens
The Shadow-Caster SCM-DLXS is a large-format marine LED down light designed for overhead illumination across interior and exterior areas of a vessel. With a 3″ profile and wide beam spread, it is well suited for T-tops, cabins, towers and general onboard lighting.
Featuring an all-glass reveal and a clean white finish, the SCM-DLXS delivers a refined appearance while maintaining reliable performance. It is available in warm white, cool white and bimini blue options to suit different onboard environments.
Key Features
- 300 lumens output with a wide 120° beam angle
- 3″ low-profile design for overhead installation
- All-glass reveal for a modern, refined finish
- Available in warm white, cool white and bimini blue
- Aluminium housing with durable glass lens
- High-efficiency power supply for stable performance
- IP67 rated and backed by a 3-year warranty
General Specification
| Part Number | 09.05.0794 |
| Product Code | SCM-DLXS-WW-WH |
| Colour Type | Single Colour |
| Colour | Warm White |
| Housing Color | White |
| Lumens | 300 |
| Beam Angle | 120° |
| Input Voltage | 10-30V DC |
| Power Draw | 3W |
| Current Draw | 250mA @ 12 volts, 125mA @ 24 volts |
| IP Rating | IP67 |
| Warranty | 3 years |
