SCM-DLX 3” Marine LED Downlight - White with Chrome Window Housing - 12-24V DC - Colour Changing - 300 Lumens

SCM-DLX 3” Marine LED Downlight - White with Chrome Window Housing - 12-24V DC - Colour Changing - 300 Lumens
AED 563.00 Excl. tax

Stock Status: In stock

EEPN 09.05.0786 | OEM SCM-DLX-CC-CHR-WH

Download Document

document-text

Description

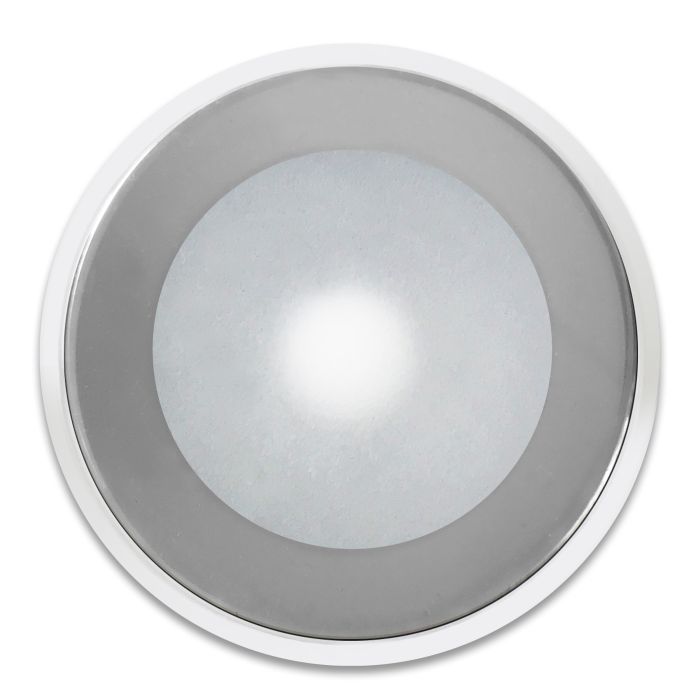

Shadow-Caster LED Lighting SCM-DLX-CC-CHR-WH 3” Marine LED Downlight – White with Chrome Window Housing – 12-24V DC – Colour Changing – 300 Lumens

The Shadow-Caster SCM-DLX is a larger-format marine LED down light designed for overhead illumination across interior and exterior areas of a vessel. With a 3″ profile and wide beam spread, it is well suited for T-tops, cabins, towers and general onboard lighting.

Featuring an all-glass reveal and available in white, black or polished chrome finishes, the SCM-DLX combines clean aesthetics with reliable performance. It is offered in single colour, tri-colour and full colour variants, with flexible control via standard switching or integration with Shadow-NET® systems.

Key Features

  • 300 lumens output with a wide 120° beam angle
  • 3″ low-profile design for overhead installation
  • All-glass reveal for a refined, modern finish
  • Available in single, tri-colour and full colour options
  • Soft-start technology for gradual brightness increase
  • Power toggle control for colour and brightness adjustment
  • True white LED for accurate colour output
  • Aluminium housing with durable glass lens
  • Available in white, black or polished chrome finishes
  • IP67 rated and backed by a 3-year warranty
cog

General Specification

Part Number 09.05.0786
Product Code SCM-DLX-CC-CHR-WH
Colour Type Colour Changing
Colour Colour Changing
Housing Colour White with Chrome Window
Range SCM-DLX Series
Lumens 300
Beam Angle 120°
Input Voltage 10-30V DC
Power Draw 3W
Current Draw 250mA @ 12 volts, 125mA @ 24 volts
IP Rating IP67
Warranty 3 years
Press to skip carousel

More from Shadow-Caster Lighting

SCM-LC-N2K Marine RGB Lighting Controller – NMEA 2000 – Multi-Zone
In stock
AED 2,467.00
EEPN 09.03.0618 OEM SCM-LC-N2K
SCM-LC-N2K Marine RGB Lighting Controller – NMEA 2000 – Multi-Zone

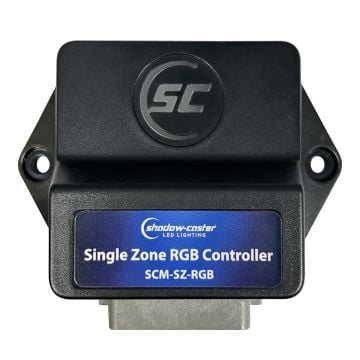

SCM-SZ-RGB Marine RGBW Lighting Controller – Single Zone
