SCM-DLX 3” Marine LED Downlight - Black Housing - 12-24V DC - Great White - 300 Lumens
Download Document
Description

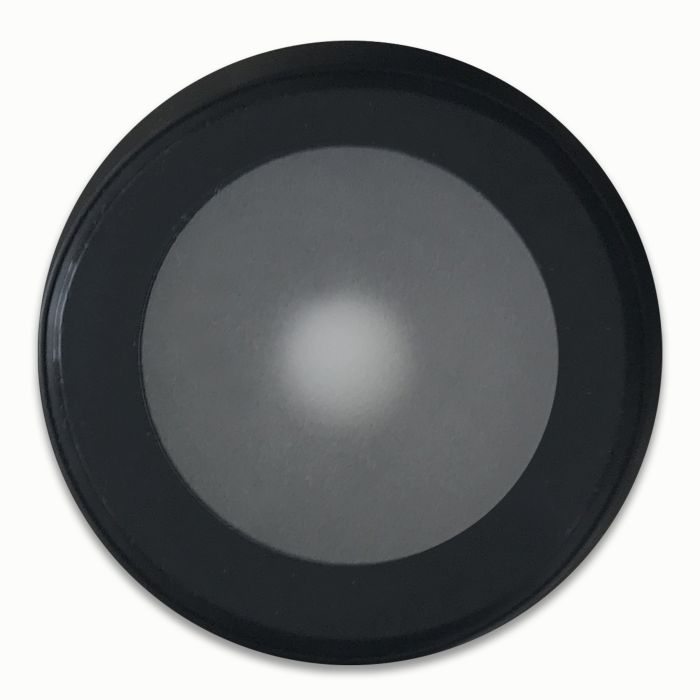

Shadow-Caster LED Lighting SCM-DLX-GW-BK 3” Marine LED Downlight – Black Housing – 12-24V DC – Great White – 300 Lumens
The Shadow-Caster SCM-DLX is a larger-format marine LED down light designed for overhead illumination across interior and exterior areas of a vessel. With a 3″ profile and wide beam spread, it is well suited for T-tops, cabins, towers and general onboard lighting.
Featuring an all-glass reveal and available in white, black or polished chrome finishes, the SCM-DLX combines clean aesthetics with reliable performance. It is offered in single colour, tri-colour and full colour variants, with flexible control via standard switching or integration with Shadow-NET® systems.
Key Features
- 300 lumens output with a wide 120° beam angle
- 3″ low-profile design for overhead installation
- All-glass reveal for a refined, modern finish
- Available in single, tri-colour and full colour options
- Soft-start technology for gradual brightness increase
- Power toggle control for colour and brightness adjustment
- True white LED for accurate colour output
- Aluminium housing with durable glass lens
- Available in white, black or polished chrome finishes
- IP67 rated and backed by a 3-year warranty
General Specification
| Part Number | 09.05.0792 |
| Product Code | SCM-DLX-GW-BK |
| Colour Type | Single Colour |
| Colour | Great White |
| Housing Colour | Black |
| Range | SCM-DLX Series |
| Lumens | 300 |
| Beam Angle | 120° |
| Input Voltage | 10-30V DC |
| Power Draw | 3W |
| Current Draw | 250mA @ 12 volts, 125mA @ 24 volts |
| IP Rating | IP67 |
| Warranty | 3 years |
