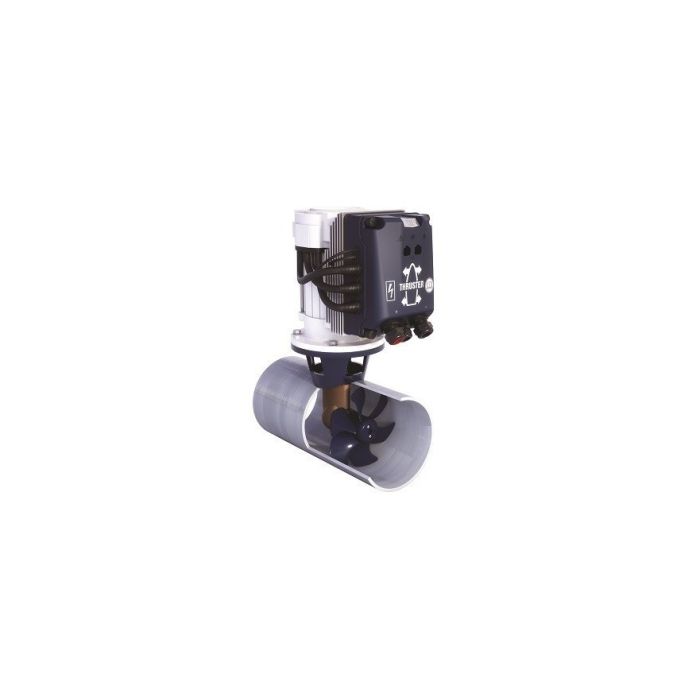

Thruster BOWA0551 55kgf 12V tunnel Dia.150mm

AED 9,992.00 Excl. tax

Stock Status: Out of stock

EEPN 06.07.0083 | OEM BOWA0551

Download Document

document-text

Description

Thruster BOWA0551 55kgf 12V tunnel Dia.150mm Optimal tunnel length is 300-600mm Maximum tunnel length is 900mm both the measurements taken at bottom end of the tunnel.

Bow thruster proportional brushless 55 kgf, 12V in 150mm tunnel with extended run time
Revolutional concept matched with proven technology

Vetus BOW PRO thrusters use proven induction motors without carbon brushes.
As a result, the bow thruster motor is maintenance-free and has Endurance Rated* run-time!
Just the tailpiece and the power circuits need regular maintenance.
The induction motor is controlled by the VETUS MCV motor controller.
This in-house-engineered motor controller can handle both 12 V or 24 V board systems,
making the new BOW PRO thruster suitable for almost all boats.
The built-in over-temp and low battery protection, combined with the brushless induction motor make the
BOW PRO thruster series highly resistent to abuse and ideal for even the most inexperienced boater!
BOW PRO thruster is controlled by proprietary CANBUS protocol (digital control).
There are two fully-proportional panels available forthe thruster series; one basic panel (BPPPA) and
one panel with lock-and-hold function for easy docking (BPPJA).
BOW PRO thrusters utilize same propellers and gearboxes proven in VETUS thrusters for over 30 years.
Upgrading a boat with an existing thruster to a BOW PRO thrust easily accommodated as the
Bow Pro thruster was made to share tunnel sizes with current VETUS thrusters as well as many other brands.

cog

General Specification

Part number 06.07.0083
Model BOWA0571
Thrust in N (kgf) (power output) 550 (55)
Power kW 3.1
Brushless induction motor ✓
Tunnel diameter, internal, mm 150
Weight excl. tunnel, in kg 35
For DC Systems, Volt 12
Current consumption, Amps. 295
Operating time:
• continuously at maximum thrust, in minutes
• at reduced thrust

5
Endurance rated
Main fuse ZE355 (355 Amps)
Batteries 12 Volt D.C., min. Ah 1 x 120
Battery main switch, model BATSW 250
