Thruster Bow PRO 65 kgf 12V tunnel Dia.185mm
Download Document
Description

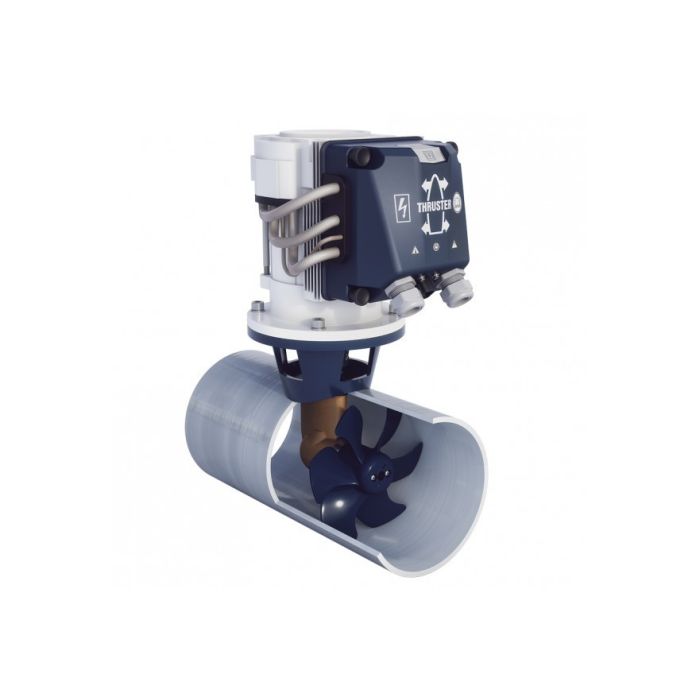

Bow thruster proportional brushless 65 kgf, 12V in 185mm tunnel with extended run time
Revolution: The BOW PRO thrusters are fitted with proven induction technology. This system makes the use of carbon brushes obsolete. As a result, the bow thruster is very quiet and has unlimited* runtime! The induction motor is controlled by the VETUS MCV motor controller. This in-house-engineered motor controller can handle both 12 V and 24 V, making the new bow thruster suitable for almost all boats!
Evolution: The BOW PRO thruster is controlled by a proprietary CANBUS protocol. There are two different panels available for this thruster; one fully-proportional basic panel and one fully-proportional panel with lock-function. This allows the boat to be moored without the use of ropes. Letting passengers board your vessel have never been this easy! Evolution is to continue on a set of good properties, so there are similarities with its predecessors: remained are the very silent propeller blades and the streamlined tailpiece.Retrofitting a BOW PRO thruster therefore is a piece of cake as the new motor is interchangeable with the tailpiece and flange of our thruster range.
- Reliable & proportional control
- Unlimited* run-time
- Brushless (no maintenance & ignition protected)
- Hold-function for easy docking
- Highly efficient (up to 93%)
- Safe & Easy to install
- Backwards compatible: easily upgrade existing Vetus C & D series bow thrusters
- THE solution for charter boats
- More of these revolutionary models will follow shortly!
(*) The only limitation is the size of your battery bank.
General Specification
| Part number | 06.07.0080 |
| Model | BOWA0651 |
| Thrust in N (kgf) (power output) | 650 (65) |
| Power kW | 3.1 |
| Brushless induction motor | ✓ |
| Tunnel diameter, internal, mm | 185 |
| Weight excl. tunnel, in kg | 35 |
| For DC Systems, Volt | 12 |
| Current consumption, Amps. | 237 |
| Operating time: • continuously at maximum thrust, in minutes • at reduced thrust |
10 Endurance rated |
| Main fuse | ZE355 (355 Amps) |
| Batteries 12 Volt D.C., min. Ah | 1 x 125 |
| Battery main switch, model BATSW | 250 |
