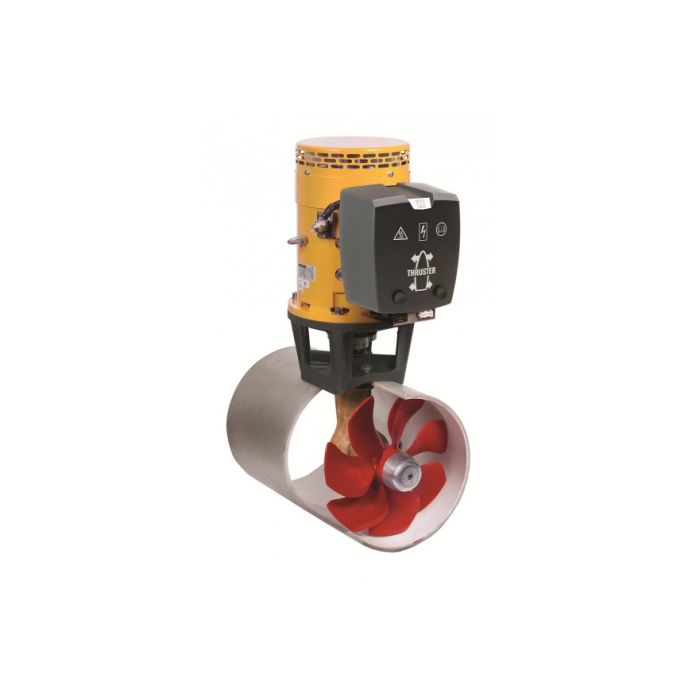

Thruster Bow 285 kgf 48V tunnel dia.300mm

AED 39,126.00 Excl. tax

Stock Status: In stock

EEPN 06.07.0039 | OEM BOW28548D

Download Document

document-text

Description

Thruster Bow 285 kgf 48V tunnel dia.300mm Optimal tunnel length is 600-1200mm Maximum tunnel length is 1800mm both the measurements taken at bottom end of the tunnel.

BOW THRUSTER 285 KGF, 48 VOLT DC
VETUS bow thruster with 285 kgf thrust force, suitable for boats from 22 to 29 metres in length. 48 Volt version.

Advantages of VETUS bow thrusters

A single propeller creates less flow disturbance in the tunnel
The VETUS unique propeller blade design minimises cavitation noise
The use of a flexible coupling between tail piece and motor eliminates vibration
All VETUS systems use a streamlined tail piece for optimum flow
A strong synthetic propeller eliminates corrosion and reduces weight
Systems are easy to install, supplied with clear installation and operation instructions
VETUS systems use a new line of high quality aluminium control panels which are interchangeable with older panels
All VETUS manoeuvring systems meet the EMC requirements
Voltage : 48 Volt DC

cog

General Specification

Part number 06.07.0039
Model BOW28548D
Thrust, N (kgf) 2580 (285) - 48 V
Power kW (hp) 16 (21.5)
Motor, reversible (dc) yes
Tunnel ID (mm) 300
Weight excluding tunnel (kg) 68
Voltage 48
Current consumption (A) 560
Operating time
- continuously, in minutes
- maximum per hour, in minutes
2.5
2.5
Main fuse, “slow blow” (A) 355
Batteries 12 Volt dc (min. Ah / max. Ah) 4 x 145 / 8 x 120
Battery cables**, total length of positive and
negative cables together (m / mm²)
0-23 / 95
Battery main switch, model BATSW/ BPMAIN 600
* This fuse is standard supply
