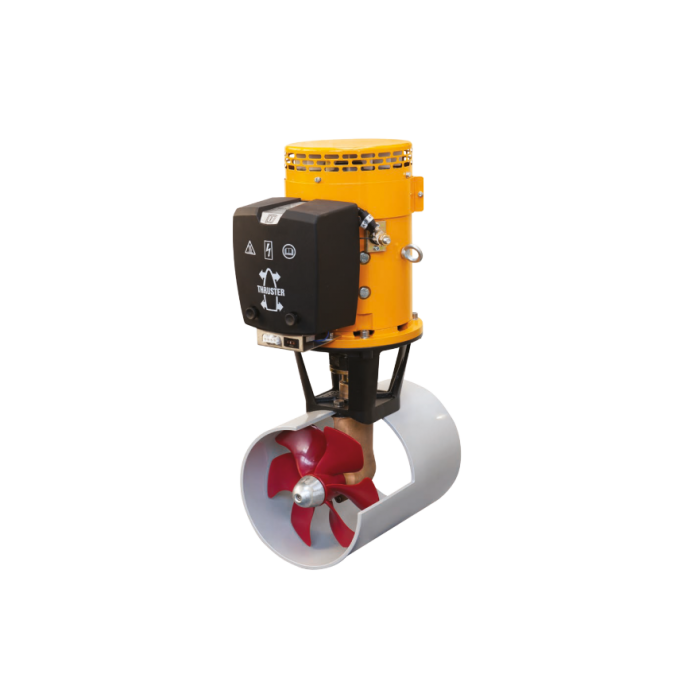

Thruster Bow 220 kgf 24V tunnel Dia.300mm
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description
BOW THRUSTER 220KGF 24V
Extended runtime thrusters can be operated continuously for at least 7 minutes
Delivers a lot extra! Extended runtime thrusters can be operated continuously for at least 7 minutes without overheating.
There is no doubt that all boaters can benefit highly from these thrusters designed for joystick docking and other more demanding applications.
General Specification
| Part number | 06.07.0075 |
| Model | BOW2204DE |
| Thrust, N (kgf) | 2200 (220) |
| Power kW (hp) | 11 (15) |
| Motor, reversible (dc) | yes |
| Tunnel ID (mm) | 300 |
| Weight excluding tunnel (kg) | 68 |
| Voltage, Volt D.C. | 24 |
| Current consumption (A) | 720 |
| Operating time - continuously, in minutes - maximum per hour, in minutes |
7 7 |
| Main fuse, “slow blow” (A) | 675 |
| Batteries 12 V dc (min. Ah / max. Ah @ 24V) | 325/650 |
| Battery cables**, total length of positive and negative cables together (m / mm²) | 0-21/150 |
| Battery main switch, model BATSW / type BPMAIN | - |
