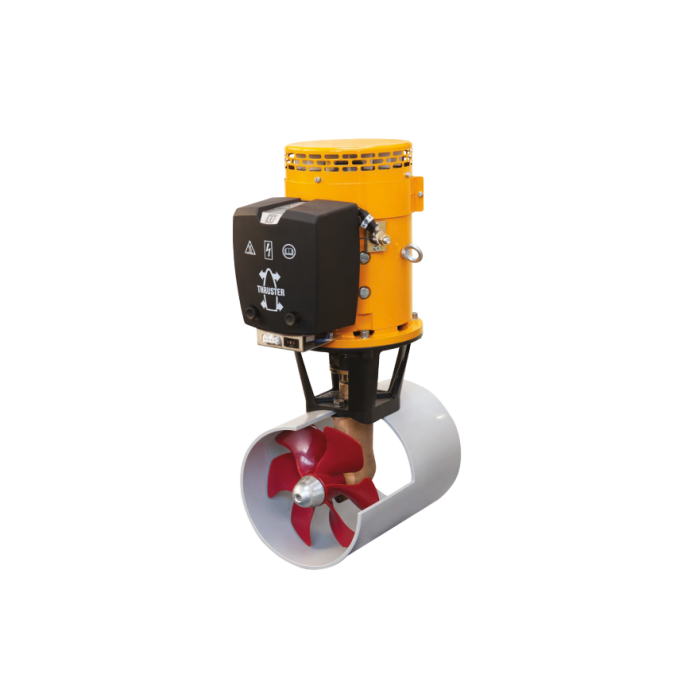

Thruster Bow 105 kgf 24V tunnel Dia.185mm

AED 16,938.00 Excl. tax

Stock Status: Out of stock

EEPN 06.07.0072 | OEM BOW954DE

Download Document

document-text

Description

Thruster Bow 105 kgf 24V tunnel Dia.185mm Optimal tunnel length is 370-740mm Maximum tunnel length is 1110mm both the measurements taken at bottom end of the tunnel.

BOW THRUSTER 105KGF 24V EXTENDED RUNTIME
Endless possibilities with the 'extended runtime ' bow thruster!
Delivers a lot extra! Extended runtime thrusters can be operated continuously for at least 7 minutes without overheating.
There is no doubt that all boaters can benefit highly from these thrusters designed for joystick docking and other more demanding applications.

cog

General Specification

Part number 06.07.0072
Model BOW954DE
Thrust, N (kgf) 1050 (105)
Power kW (hp) 5.7 (8)
Motor, reversible (dc) yes
Tunnel ID (mm) 185
Weight excluding tunnel (kg) 30.7
Voltage, Volt D.C. 24
Current consumption (A) 350
Operating time
- continuously, in minutes
- maximum per hour, in minutes

10
10
Main fuse, “slow blow” (A) 355
Batteries 12 V dc (min. Ah / max. Ah @ 24V) 248/496
Battery cables**, total length of positive and negative cables together (m / mm²) 0-21/70
Battery main switch, model BATSW / type BPMAIN 600 / 24
