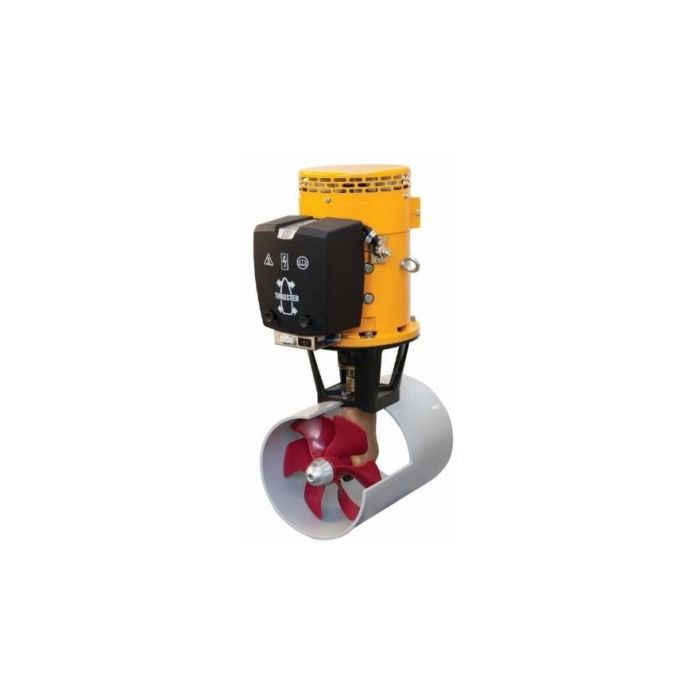

Thruster Bow 180kgf 24V tunnel dia.250mm

AED 25,632.00 Excl. tax

Stock Status: Out of stock

EEPN 06.07.0107 | OEM BOW18024D

Download Document

document-text

Description

Thruster Bow 180kgf 24V tunnel dia.250mm Optimal tunnel length is 500-1000mm Maximum tunnel length is 1500mm both the measurements taken at bottom end of the tunnel.

BOW THRUSTER 180KGF
This BOW thruster provides 180 kgf on a 24 V power supply.
This thruster is an evolution of the C version and features the newest innovations like temperature sensor and a low noise 6 blade propeller.
Run-time is dramatically improved (up to 4 minutes!). With a similar flange to other models in the range, the motor can be rotated in increments of 90° for easy accessibility.
The BOW18024D has the same low-noise propeller blades and a streamlined tail piece as it's siblings.

Highlights:

  • 180kgf from a 250 mm tunnel
  • Easy to install
  • Single propeller for a homogeneous flow in the thruster tunnel
  • Strong, lightweight and corrosion resistant synthetic propeller
  • Flexible coupling between tailpiece and motor reduces vibrations
  • Meets EMC requirements
cog

General Specification

Part number 06.07.0107
Model BOW18024D
Thrust, N (kgf) 2000 (200) - 24 V
Power kW (hp) 7 (9)
Motor, reversible (dc) yes
Tunnel ID (mm) 250
Weight excluding tunnel (kg) 55
Voltage 24
Current consumption (A) 400
Operating time
- continuously, in minutes
- maximum per hour, in minutes

4
4
Main fuse, “slow blow” (A) 425
Batteries 12 Volt dc (min. Ah / max. Ah) 2 x 165 / 4 x 165
Battery main switch, model BATSW/ BPMAIN 600 / 24
* This fuse is standard supply
