Steering kit GF300HD2 for 300HP outboard engine

Mavi Mare
AED 6,741.00 Excl. tax

Stock Status: Out of stock

EEPN 06.01.0170 | OEM GF300HD2

Download Document

Brochures
document-text

Description

Double cylinder hydraulic steering kit for OB engines up to 300 Hp
GF300HD2

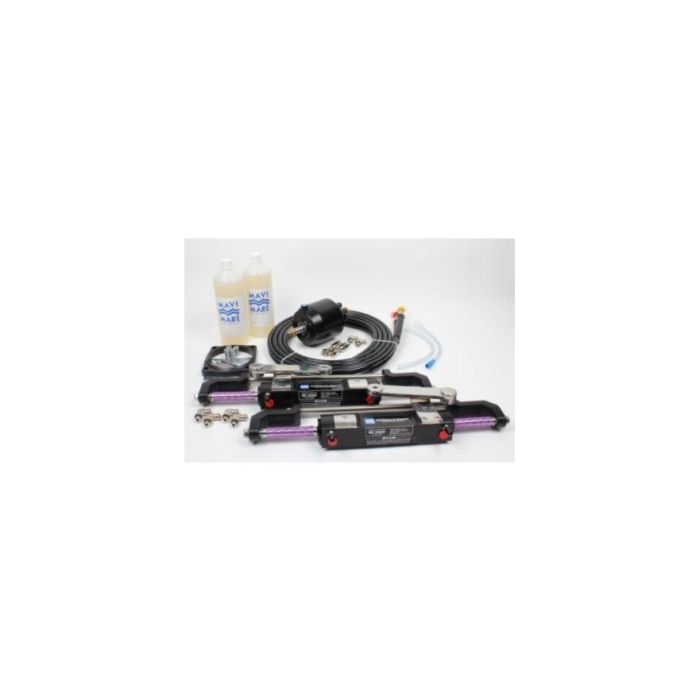

Kit comprises of :

- GM2-MRA03 pump + 2 MC300HD cylinder + brass fittings (1 kit GTN7x10916+ 1 Kit AC38/T916 ) +  2Lt. oil hydraulic + 15 mt SAE100 R7 5/16 hose.
- Turns head to head 8
- Suitable for up to 300 hp or a couple of 300 hp (600 hp) engine with counter rotating propellers.
- All the system an not intended for racing boat.
- Steering system kit supplied with 2 hoses of 7.5m each ,with fittings pressed on one end.

Cylinder technical features :
- Frontal mounting balanced cylinder "bullhorn" type.


NEW: Support rod is composed of two pieces for easy and fast installation, expecially where space is a constraint & in the splash well.

Hoses and fittings kits 06.01.0134 (X.351) or X.352 for double cylinder must be ordered separately.

Parts which make up the complete kit and can be ordered separately.
EE Part number OEM part# Description
06.01.0130 GM2-MRA03-T Pump
06.01.0171 MC300HD Frontal mounting / balanced bull horn type right cylinder
06.01.0172 MC300HD2 Frontal mounting / balanced bull horn type left cylinder
06.01.0110 X.372 Connection filler tube kit
06.01.0147 GTN7X10916 Connection kit brass
06.01.0152 AC38/T916 Connection kit
06.01.0111 H-AP51 Hydraulic oil
06.01.0128 SAE10038 Kit comprises of 2 HP 5/16” nylon hoses with fittings (2 x 7.5 m hose).



Cylinder details:
Volume (cm³) 140
Stroke (mm) 198
Ø rod shaft (mm) 22



Pump details:
Capacity (cc) 32
No. of pistons 7
max pressure (bar) 60
Weight (kg) 5.5
cog

General Specification

For 2 engines & 1 cylinders application use the following components (order separately).
Part number OEM Part# Description
06.01.0118 358.06 Tie bar SS 316 for twin engines OR
06.01.0173 358.09 Tie bar SS 316 for twin engines
06.01.0134 X.351 Hose kit



For 2 engines & 2 cylinders application use the following components (order separately).
Part number OEM Part# Description
06.01.0118 358.06 Tie bar SS 316 for twin engines OR
06.01.0174 358.10 Tie bar SS 316 for twin engines
06.01.0134 X.351 Hose kit



For 3 engines & 2 cylinders application use the following components (order separately).
Part number OEM Part# Description
06.01.0173 358.09 Tie bar SS 316 for twin engines
06.01.0175 358.09R Tie bar SS 316 for twin engines
06.01.0134 X.351 Hose kit (Order 2 pcs)
