Steering kit for 150HP outboard engines
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description
Hydraulic steering kit with Frontal mounting Cylinder for Outboard engines up to 150 Hp
GF150BRT

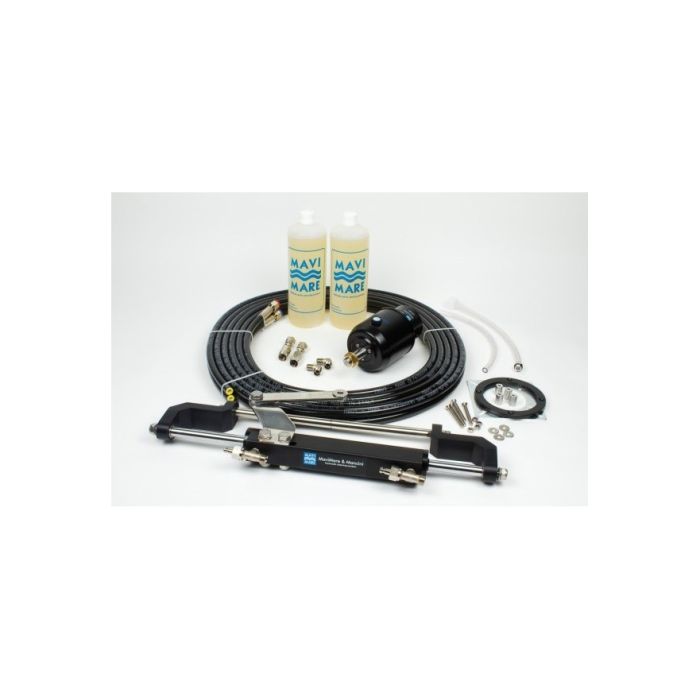

Kit comprises of :
- GM0-MRA pump + MC150BR cilinder + chrome plated brass fittings (1 kit GTN7x10916+ 1 Kit AC10/T916 )+ 2x6 mt SAE100 R7 1/4 hose + 2 lt hydraulic oil.
- Steering system kit supplied with 2 hoses of 6m each , with fittings pressed on one end.
- Turns head to head 4.9.
Cylinder technical features :
- Frontal mounting balanced cylinder "bullhorn" type.
- Universal and compact cylinder.
NEW: Support rod is composed of two pieces for easy and fast installation, expecially where space is a constraint & in the splash well.
NOTE: Use kit 06.01.0113 (X.342) for applications on Yamaha 40/50/60/70 HP and Honda 115/130 engines.
| Parts which make up the complete kit and can be ordered separately. | ||
| EE Part number | OEM part# | Description |
| 06.01.0115 | GM0-MRA | Pump |
| 06.01.0116 | MC 150BR | Frontal mounting / balanced cylinder |
| 06.01.0110 | X.372 | Connection filler tube kit |
| 06.01.0111 | H-AP51 | Hydraulic oil |
| 06.01.0112 | SAE100R7 | Kit comprises of 2 HP ¼” nylon hoses with fittings (2 x 6 m hose) |
| Cylinder details: | |
| Volume (cm³) | 83 |
| Stroke (mm) | 200 |
| Ø rod shaft (mm) | 16 |
| Pump details: | |
| Capacity (cc) | 17 |
| No. of pistons | 7 |
| max pressure (bar) | 70 |
| Weight (kg) | 2.8 |
General Specification
| For 2 engines & 1 or 2 cylinders (for independent engine tilting) application use the following components (order separately). | ||
| Part number | OEM Part# | Description |
| 06.01.0117 | 358.02 | Tie bar SS 316 for twin engines allows independent engine tilting |
| For 2 engines & 1 or 2 cylinders application use the following components (order separately). | ||
| Part number | OEM Part# | Description |
| 06.01.0118 | 358.06 | Tie bar SS 316 for twin engines |
| For Yamaha 40/50/60/70 Hp engines & Honda 115/130 order the below kit separately. | ||
| Part number | OEM Part# | Description |
| 06.01.0113 | X.342 | Kit for the Yamaha 40/50/60/70 and Honda 115/130 engines. |
