Steering kit for 300HP outboard engine

Mavi Mare
AED 4,140.00 Excl. tax

Stock Status: In stock

EEPN 06.01.0126 | OEM GF300HD

Download Document

Brochures
document-text

Description

Reinforced Hydraulic steering kit for OB engines up to 300 Hp
GF300HD

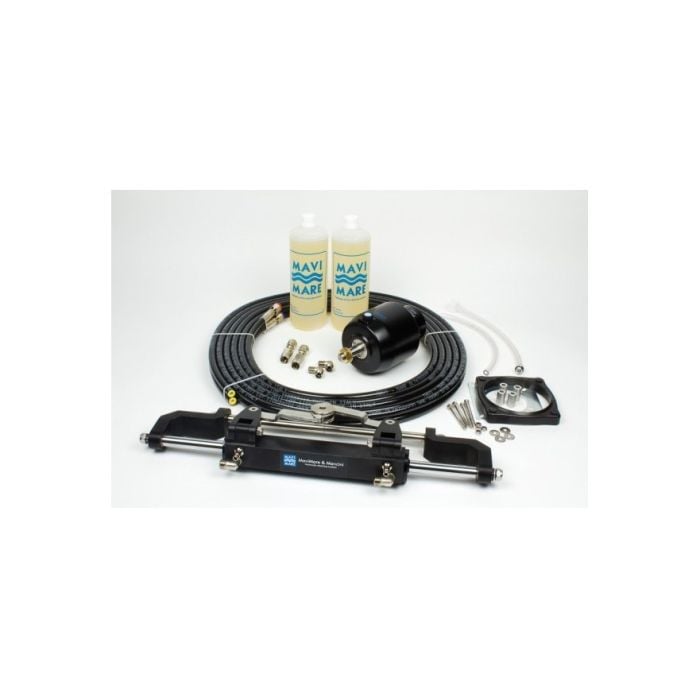

Kit comprises of :

- GM2-MRA01 pump + MC300HD cylinder + brass fittings (1 kit GTN7x10916+ 1 Kit AC38/T916 )+  2 lt. oil hydraulic + 15 mt (2 x 7.5m) SAE100 R7 5/16 hose.
- Turns head to head 5.2
- Suitable for up to 300 hp or a couple of 300 hp (600 hp) engine with counter rotating propellers.
- All the system an not intended for racing boat.
- Steering system kit supplied with 2 hoses of 7.5m each ,with fittings pressed on one end.

Cylinder technical features :
- Frontal mounting balanced cylinder "bullhorn" type, heavy duty.

Parts which make up the complete kit and can be ordered separately.
EE Part number OEM part# Description
06.01.0120 GM2-MRA01 No Pump
06.01.0127 MC3 00A Frontal mounting / balanced cylinder
06.01.0110 X.372 Connection filler tube kit
06.01.0111 H-AP51 Hydraulic oil
06.01.0128 SAE10038 Kit comprises of 2 HP 5/16” nylon hoses with fittings (2 x 7.5 m hose).



Cylinder details:
Volume (cm³) 130
Stroke (mm) 198
Ø rod shaft (mm) 18



Pump details:
Capacity (cc) 27
No. of pistons 7
max pressure (bar) 70
Weight (kg) 3.7





cog

General Specification

For 2 engines & 1 cylinders application use the following components (order separately).
Part number OEM Part# Description
06.01.0123 358.05 Tie bar SS 316
06.01.0138 X.377 SS Plate



For 3 engines & 2 cylinders application use the following components (order separately).
Part number OEM Part# Description
06.01.0123 358.05 Tie bar x 1 pc
06.01.0165 358.05R Reverse tie bar x 1 pc
06.01.0133 X.376 Center engine plate SS 316
06.01.0134 X.351 Hose kit



For Honda 115/130 Hp & Mercury 115 Hp engines order kits separately.
Part number OEM Part# Description
06.01.0124 X.340 Kit for Honda engines 115/130Hp
06.01.0125 X.356 Kit for Mercury engines 115Hp
