Hydraulic Steering System for Power Assisted Stern Drive Engine
AED 4,300.00
Excl. tax
Excl. tax
Stock Status: In stock
EEPN 06.01.0156
|
OEM GF150T
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description
Description
Hydraulic steering system for power assisted stern drive engine
GF150T

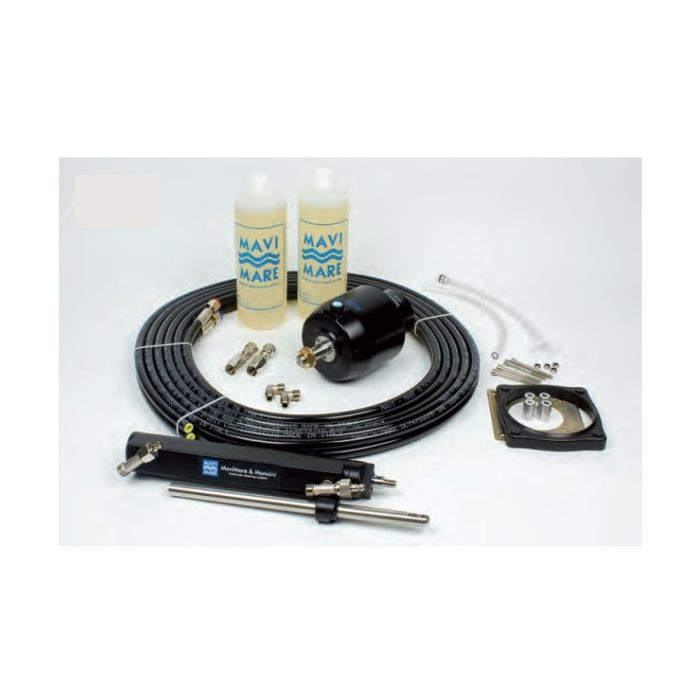

Kit comprises of:
- GM2-MRA01 pump+ MC150 cylinder + chrome plated brass fittings + 7,5 x 2 mt SAE 100R7 5/16 hose + 2 lt hydraulic oil.
- Turns head to head 3.4/5
Cylinder Feature:
- Lateral mounting cylinderTiller arm not included in the kit.
| Parts which make up the complete kit and can be ordered separately. | ||
| EE Part number | OEM part# | Description |
| 06.01.0120 | GM2-MRA01 No | Pump |
| 06.01.0166 | MC150 | Lateral mounting / unbalanced cylinder |
| 06.01.0110 | X.372 | Connection filler tube kit |
| 06.01.0111 | H-AP51 | Hydraulic oil |
| 06.01.0128 | SAE10038 | Kit comprises of 2 hoses with fittings (2 x 6 m hose). |
| Cylinder details: | |
| Volume (cm³) | 88/123 |
| Stroke (mm) | 200 |
| Ø rod shaft (mm) | 15 |
| Pump details: | |
| Capacity (cc) | 27 |
| No. of pistons | 7 |
| max pressure (bar) | 70 |
| Weight (kg) | 3.7 |
General Specification
| Cylinder details | |
| Volume (cm³) | 88/123 |
| Stroke (mm) | 200 |
| Ø rod shaft (mm) | 15 |
| Pump details | |
| Capacity (cm³) | 27 |
| No. of pistons | 7 |
| Max pressure (bar) | 70 |
| Weight (kg) | 3.7 |
