Steering kit GF300BHD evolution for up to 300HP outboard engine
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description
Evolution - Hydraulic steering kit with laterral mounting hoses for OB engines up to 300 Hp
GF300BHD

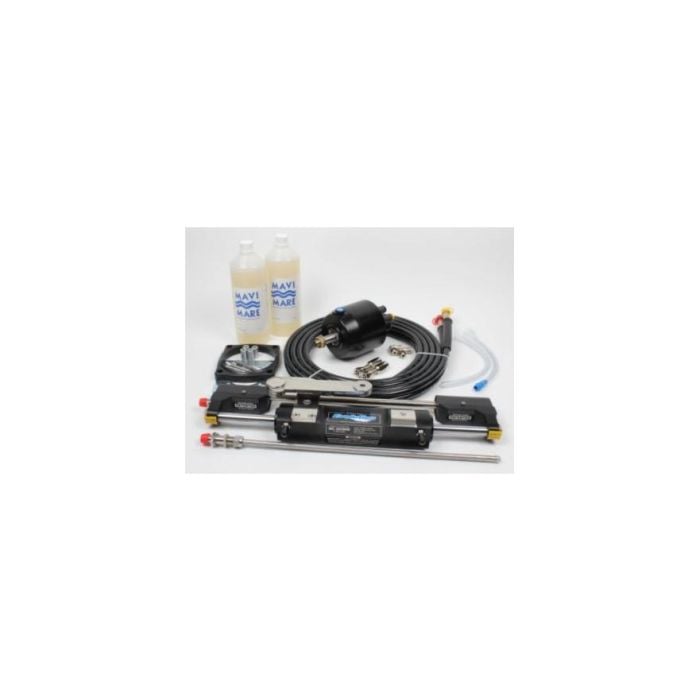

Kit comprises of :
- GM2-MRA01 pump + MC300BHD cylinder + brass fittings (1 kit GTN7x10916+ 1 Kit AC38/T916 )+ 2 ltr. oil hydraulic + 15 mt SAE100 R7 5/16 hose.
- Turns head to head 5
- Suitable for up to 300 hp or a couple of 300 hp (600 hp) engine with counter rotating propellers.
- All the system an not intended for racing boat.
- Steering system kit supplied with 2 hoses of 7.5m each ,with fittings pressed on one end.
Cylinder technical features :
- Frontal mounting balanced cylinder "bullhorn" type.
- Patented cylinder "Evolution" with fixed hoses
| Parts which make up the complete kit and can be ordered separately. | ||
| EE Part number | OEM part# | Description |
| 06.01.0120 | GM2-MRA01 No | Pump |
| 06.01.0177 | MC 300BHD | Frontal mounting / balanced cylinder |
| 06.01.0110 | X.372 | Connection filler tube kit |
| 06.01.0111 | H-AP51 | Hydraulic oil |
| 06.01.0112 | SAE100R7 | Kit comprises of 2 HP ¼” nylon hoses with fittings (2 x 6 m hose) |
| Cylinder details: | |
| Volume (cm³) | 130 |
| Stroke (mm) | 198 |
| Ø rod shaft (mm) | 18 |
| Pump details: | |
| Capacity (cc) | 27 |
| No. of pistons | 7 |
| max pressure (bar) | 70 |
| Weight (kg) | 3.4 |
General Specification
| For frontal hoses connection use the following kit (order separately). | ||
| Part number | OEM Part# | Description |
| 06.01.0122 | X.344 | Use this kit in order to have a frontal hose connections when clearance between the end of the steering cylinder to the motorwell wall is not enough to connect the hose laterally. |
| For 2 engines & 1 cylinders application use the following components (order separately). | ||
| Part number | OEM Part# | Description |
| 06.01.0123 | 358.05 | Tie bar SS 316 |
| 06.01.0138 | X.377 | SS Plate |
| 06.01.0164 | X.357 | Support |
| For 2 engines & 2 cylinders application use the following components (order separately). | ||
| Part number | OEM Part# | Description |
| 06.01.0131 | 358.04 | Tie bar SS 316 |
| 06.01.0134 | X.351 | Kit composed of 2 pcs of hose 7.5m with fittings on one end (TTN 7x10916 e 3 AC38/T916 fittings) & 2 lt. of hydraulic oil. |
| For Honda 115/130 Hp & Mercury 115 Hp engines order kits separately. | ||
| Part number | OEM Part# | Description |
| 06.01.0124 | X.340 | Kit for Honda engines 115/130Hp |
| 06.01.0125 | X.356 | Kit for Mercury engines 115Hp |
