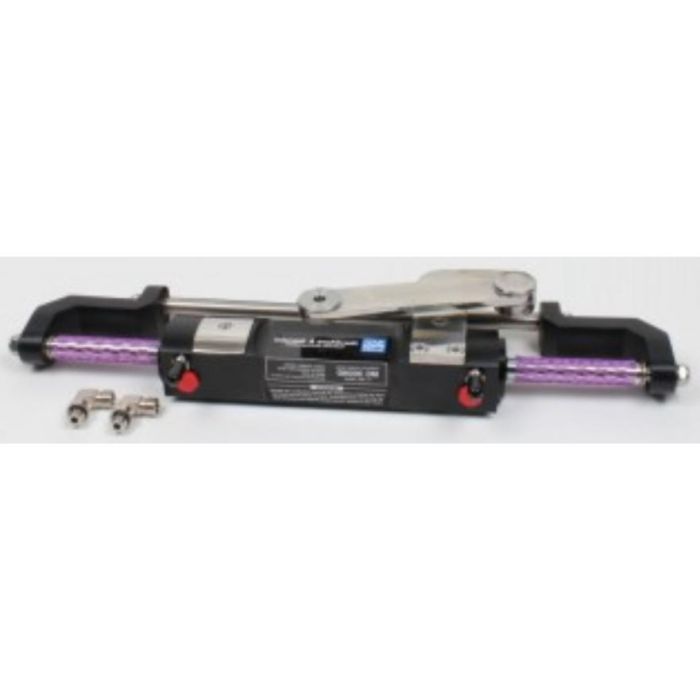

Steering cylinder MC300HD2 for kit GF300HD2, 140cc 198mm stroke 22mm shaft dia. left frontal mounting / balanced bull horn type

Steering cylinder
MC300HD2

Reinforced cylinder frontal mounting / balanced bull horn type left cylinder.
In the applications with dual MC300HD cylinder it is necessary to order a standard MC300HD cylinder (link arm attached to the starboard side of the cylinder) and a port cylinder (link arm attached to the port side of the cylinder, Art. MC300HD-2).
Volume: 140 cm³
Stroke: 198 mm.
Ø Shaft: 22 mm.

Used in the double cylinder hydraulic steering kit for OB engines up to 300 Hp, 06.01.0170
