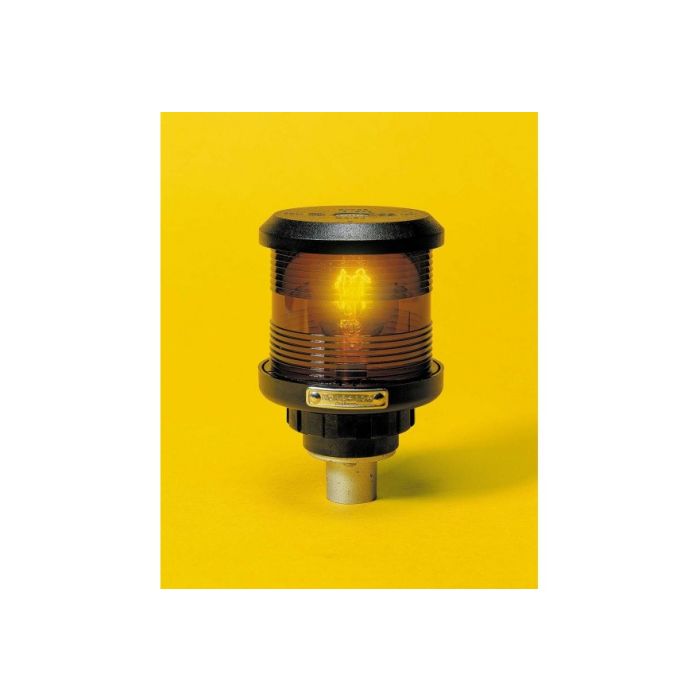

Navigation White RW35P pipemount 360 deg.light (without bulb) 2nm minimum visibility

DHR35 Navigation light, RW35P, Pipe mount, All-round, White light, without bulb

The most compact conventional navigation light using incandescent bulbs.
Ideal for seagoing vessels less than 20m in length/inland navigation and yachting.

In compliance with:
• International Regulations for Preventing Collisions at Sea; COLREG 72 and latest amendments
• Rhine and European inland navigation rules
• The Directives 96/98/EC and 82/714/EC, following the European standard: EN 14744 (2005) AC(2006), Inland navigation vessels and sea-going vessels - navigation light

Approval:
MED96/98/EC Wheelmark

Materials:
• Housing: Matt black polycarbonate, reinforced with fibreglass
• Lens: Polycarbonate Fresnel lens, shock resistant
• Metal parts: Corrosion free, seawater resistant and non-magnetic

Electrical insulation class: III

Power supply: 24VDC - Max. 25W

Protection class: IP56

Lampholder: Bay15d

Operation temperature: -25°C up to +55°C

Wiring: PG9 Cable gland from below

Weight: 0.3Kg

Visibility : 2 NM
