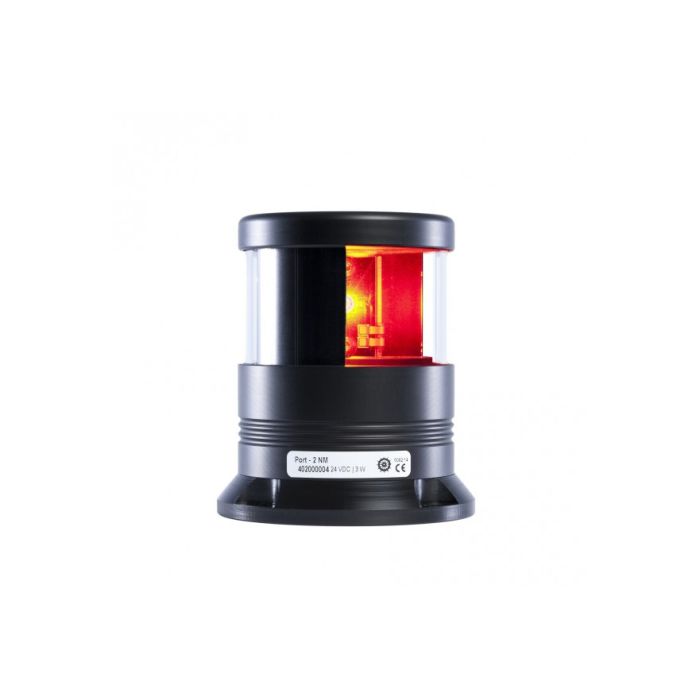

Navigation LED Port 24V DHR40 sectional type base mount light 2nm minimum visibility

DHR40 LED Navigation light, Sectional type, Base mount, Port light, 112.5˚, 2 nm.
For seagoing vessels less than 20m in length/inland navigation & yachting.

The DHR40 LED, is DHR's most compact navigation light with LED Technology.
Ideally suited for small boats and agile vessels, because of its excellent visibility characteristics at high vertical angles.
With a well thought out design, where style meets functionality, the DHR40 LED sets the standard in navigation lighting.
Another distinctive feature is the availability of a flashing option.
The use of automotive leds and high quality components assures the most robust and durable navigation light.
Interference noise does not occur and with a 50000 hour lifetime it reduces expensive maintenance costs to a minimum.

Application
Vessels less than 20 meters in length.
Inland navigation vessels
Seagoing vessels

Materials
Black, hard anodised seawater resistant aluminium
POM base to prevent galvanic corrosion
Borosilicate glass lens
Epoxy potted LED driver for maximum protection

Weight: 0.5 Kg

Lifetime: 50000 hours

Approvals
MED 96/98/EC
USCG

Visibility : 2 N.M.

Operating temperature: -25 to 55°C

Protection class: IP66

Powersupply: 24VDC
