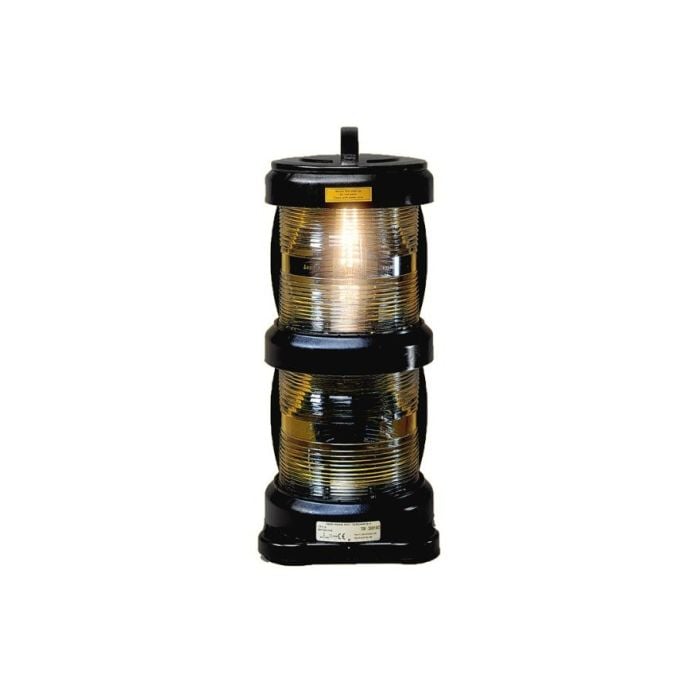

Navigation Mast DHR70N duplex sectional type light (without bulb) 6nm minimum visibility

DHR70N Navigation light, Duplex, Sectional Type, Masthead light, 225˚, 6 nm. minimum visibility.

Application:
• As Navigation light for all sea-going vessels with a length of more than 20 metres
• As Navigation light for all vessels in Rhine and European inland navigation
• As general signalling light

In compliance with:
• International Regulations for Preventing Collisons at Sea; COLREG 72 and latest amendments
• [EU] Rhine and European inland navigation rules
• [EU] The Directives 96/98/EC and 82/714/EC, following the European standard: EN 14744 (2005)  AC(2006), Inland navigation vessels and sea-going vessels - navigation light
• [RUS] RS Rules, part XVII, item 7.11.2.2
• [RUS] The Technical Regulation on the Safety on Sea Transport Items TR-620
• [CHINA] Guidline: S-01 Marine Electric Lights

Approvals
• MED 2014/90/EU
• LT13Q00001
• No.17.20007.271

Materials:
• Housing, mat black, high-gride of polyamide, reinforced with fibre glass
• Cover, mat black, polycarbonate, reinforced with fibre glass
• Screen and mounting materials, stainless steel 316, seawater resistant, non-magnetic
• Fresnel lens, UV and shock resistant polycarbonate
• Internal wiring, silicone 2 x 1.5 mm²

Electrical insulation class: III, (double insulated)

Protection class: IP 56

Bulb:
• P28S 230V 65W 60cd
• P28S 115V 60W 60cd
• P28S 24V 40W 60cd

Operation temperature:
-25°C up to +55°C (MED)
-40°C up to +55°C (RMRS)

Mounting: Base

External wiring:
• Single, 1 x 1.5 metre H07 RN-F 2 x 1.5
• Duplex, 2 x 1.5 metre H07 RN-F 2 x 1.5
