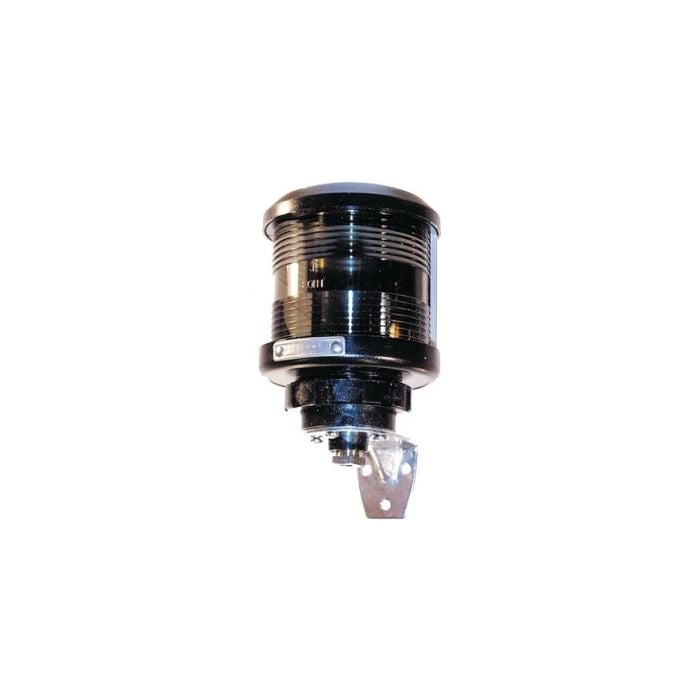

Navigation Towing HGL35Z bracket mount sectional type light (without bulb) 2nm minimum visibility DHR 35 series

DHR35 Navigation light, HGL35Z, Bracket mounted, Towing light, without bulb

The most compact conventional navigation light using incandescent bulbs.
Ideal for seagoing vessels less than 20m in length/inland navigation and yachting.

Application:
Base and side mounting models
• As Navigation light for all sea-going vessels with a length of less than 20 metres
• As Navigation light for all vessels in Rhine and European inland navigation with a length less than 20m
• As general signalling light for all types of sea-going vessels with a length up to 50m
• As general signalling light for all vessels in Rhine and European inland navigation

In compliance with:
• International Regulations for Preventing Collisions at Sea; COLREG 72 and latest amendments
• Rhine and European inland navigation rules
• The Directives 96/98/EC and 82/714/EC, following the European standard: EN 14744 (2005) AC(2006), Inland navigation vessels and sea-going vessels - navigation light

Approval:
MED96/98/EC Wheelmark

Materials:
• Housing: Matt black polycarbonate, reinforced with fibreglass
• Lens: Polycarbonate Fresnel lens, shock resistant
• Metal parts: Corrosion free, seawater resistant and non-magnetic

Electrical insulation class: III

Power supply: 24VDC - Max. 25W

Protection class: IP56

Lampholder: Bay15d

Operation temperature: -25°C up to +55°C

Wiring: PG9 Cable gland from below

Weight: 0.3Kg

Visibility: 2 N.M.
