Navigation Stern HW35V base mount sectional type light (without bulb) 2nm minimum visibility DHR35 series
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description

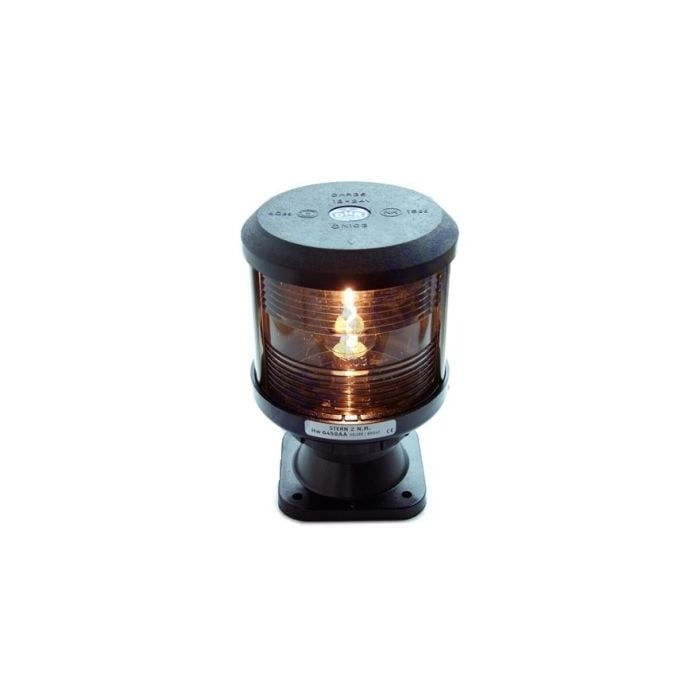

DHR35 Navigation light, HW35V, Base mounted Stern light, without bulb
The most compact conventional navigation light using incandescent bulbs.
Ideal for seagoing vessels less than 20m in length/inland navigation and yachting.
Application:
Base and side mounting models
• As Navigation light for all sea-going vessels with a length of less than 20 metres
• As Navigation light for all vessels in Rhine and European inland navigation with a length less than 20m
• As general signalling light for all types of sea-going vessels with a length up to 50m
• As general signalling light for all vessels in Rhine and European inland navigation
In compliance with:
• International Regulations for Preventing Collisions at Sea; COLREG 72 and latest amendments
• Rhine and European inland navigation rules
• The Directives 96/98/EC and 82/714/EC, following the European standard: EN 14744 (2005) AC(2006), Inland navigation vessels and sea-going vessels - navigation light
Approval:
MED96/98/EC Wheelmark
Materials:
• Housing: Matt black polycarbonate, reinforced with fibreglass
• Lens: Polycarbonate Fresnel lens, shock resistant
• Metal parts: Corrosion free, seawater resistant and non-magnetic
Electrical insulation class: III
Power supply: 24VDC - Max. 25W
Protection class: IP56
Lampholder: Bay15d
Operation temperature: -25°C up to +55°C
Wiring: PG9 Cable gland from below
Weight: 0.3Kg
Visibility: 2 N.M.
| Suitable bulbs (BAY15d) for DHR 35 lights | ||
| Part number | Volt / Watt | cd |
| 09.02.0001 | 12/25 | 40 |
| 09.02.0002 | 24 / 25 | 40 |
| 09.02.0041 | 230 / 25 | 40 |
| 09.02.0042 | 110 / 25 | 40 |
General Specification
No specifications available.
