Hydraulic Windlass RC12-12 Vertical - Low Profile, 40 LPM, 138 bar, 1590 kg Max Pull, 12mm Chain, 90mm TDC, CW
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description

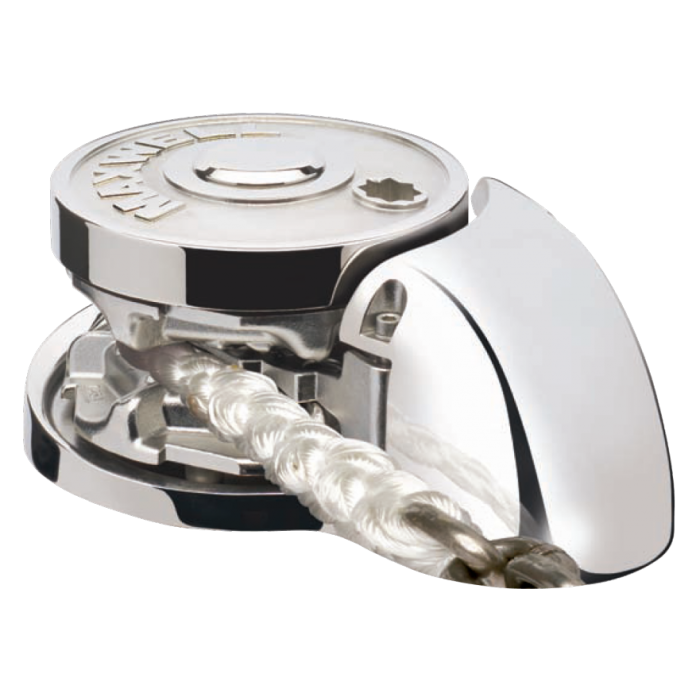

Maxwell Windlass RC12-12 HYD 90mm TDC CW (clockwise) chainwheel only
General Specification
| Model | RC12 - 12 13 mm - ½” |
| Maximum pull | 1590 kg (3500 lbs) |
| Static hold | 2200 kg (4840 lbs) |
| Chain short link | 13 mm or 3⁄8” |
| Rope size (nylon)*(Normal working load ) | 16-20 mm or 5⁄8” - 3⁄4” |
| Chain speed | 15 m/min (50 ft/min) |
| Rope speed (anchor retrieval) | 13 m/min (43 ft/min) |
| Power supply (dc) | 24V |
| Motor power | 1200W |
| Net weight-dc (capstan version) | 32 kg |
| Net weight-dc (low profile version) | 29 kg |
| For Hydraulic version: | |
| Hydraulic pressure | 138 bar (2000 psi) |
| Hydraulic flow | 42 lpm (11US gpm) |
| Net weight - hyd (low profile) | 23 kg (51 lbs) |
| Net weight - hyd (Capstan version) | 26 kg (57 lbs) |
** When ordering please specify your specific rope and chain size.
Every Maxwell RC12 automatic rope/ chain windlass includes motor/gearbox and reversing solenoid. Other electrical accessories need to be ordered separately. The above models are also available in 190mm TDC (Top deck clearance) in CW (Clock wise) & ACW (Anti clock wise) versions on request.
Note: RC12-12 Suitable for 12-13mm (1/2”) Chain and 20mm (3/4”) Nylon Rope
