Windlass RC8-8 Vertical - Low Profile, 12V, 1000W, 600 kg Max Pull, 8mm Chain, 65mm TDC, CW
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description
Description

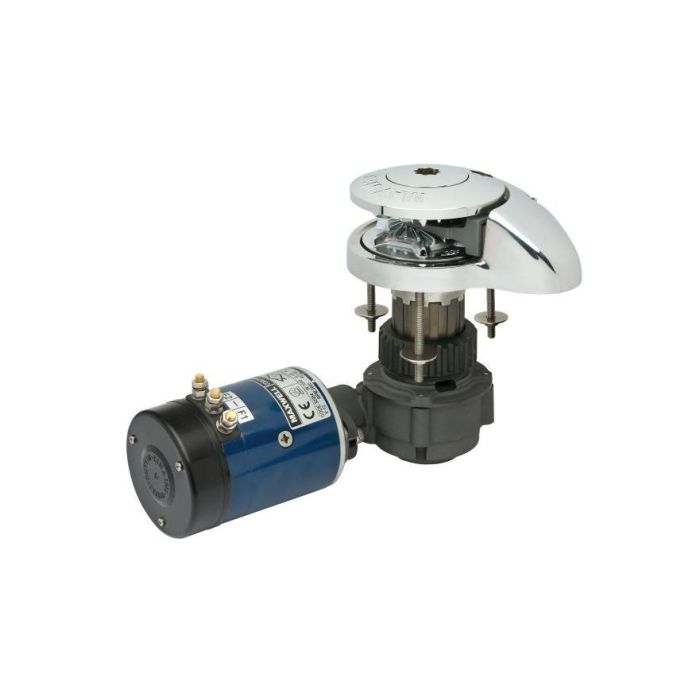

The Maxwell RC8-8 is a mid-range vertical windlass in the RC Series, designed for 6 mm to 7 mm (1/4") chain and 12 mm (1/2") nylon rope. Built from a combination of stainless steel and chromed bronze, it offers durability, corrosion resistance, and automatic rope/chain handling for reliable anchoring performance.
General Specification
| Model | RC8 - 8 |
| Maximum pull | 600 kg (1320 lbs) |
| Static hold | 1200 kg (2640 lbs) |
| Chain short link | 8 mm or 5⁄16” |
| Rope size (nylon)*(3 strand or 8 plait recommended) | 14 mm or 16 mm or 5⁄8” |
| Chain speed (anchor retrieval) | 32 m/min or 105 ft/min |
| Rope speed (anchor retrieval) | 28 m/min or 92 ft/min |
| Power supply (dc) | 12 V or 24 V |
| Motor power | 1000 W |
| Net weight | 16.5 kg (36.3 lbs) |
The above models are also available in 165mm TDC (Top deck clearance) on request. Every Maxwell RC8 automatic rope/chain windlass includes motor/ gearbox and reversing solenoid. Other electrical accessories need to be ordered separately
Note: RC8-8 Suitable for 8mm (5/16”) Chain and 14-16mm (9/16" - 5/8”) Nylon Rope.
