Windlass RC8-8 Vertical - Low Profile, 24V, 1000W, 600 kg Max Pull, 8mm Chain, 65mm TDC, CW
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description
Description

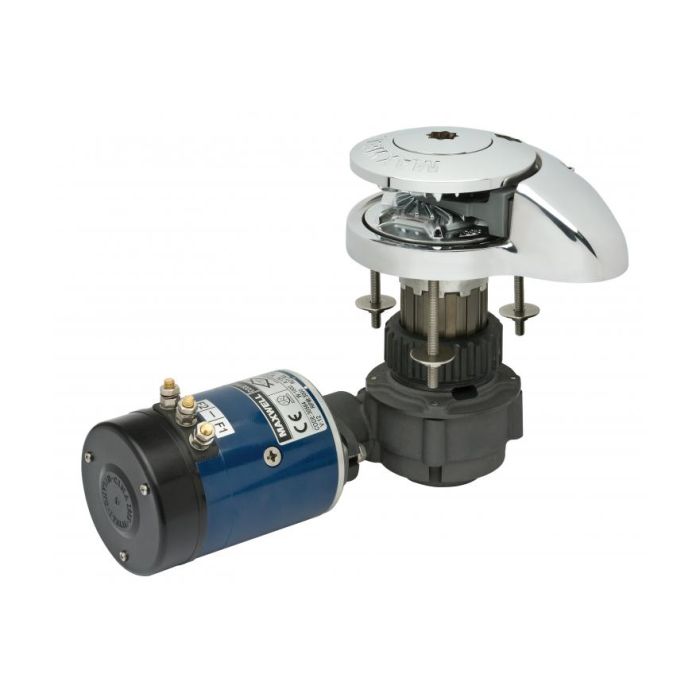

Maxwell RC8-8 65TDC 24V Windlass – Vertical Rope/Chain Anchor Winch (P102559)
The Maxwell RC8-8 65TDC 24V is a premium vertical windlass engineered for boats using a combination rope and chain rode. Designed for 8 mm chain and 14 mm (9/16") rope, it offers fully automatic operation, smooth deployment, and reliable retrieval in all conditions.
Built from robust AISI 316 stainless steel and chromed bronze, the RC8-8 combines durability with superior performance. It features Maxwell’s patented Wave Design™ gypsy for optimal grip and compatibility, ensuring safe and efficient anchoring.
Key Features:
-
Compatible with 8 mm chain and 14 mm rope
-
Heavy-duty 24V motor with 65TDC rating
-
Wave Design™ chainwheel for smooth, automatic operation
-
Compact two-piece design for easy installation and maintenance
-
Includes manual override and emergency free-fall function
-
Sealed oil-bath gearbox for maximum torque and durability
Ideal for mid-sized vessels looking for a reliable, high-performance windlass.
General Specification
| Model | RC8 - 8 |
| Maximum pull | 600 kg (1320 lbs) |
| Static hold | 1200 kg (2640 lbs) |
| Chain short link | 8 mm or 5⁄16” |
| Rope size (nylon)*(3 strand or 8 plait recommended) | 14 mm or 16 mm or 5⁄8” |
| Chain speed (anchor retrieval) | 32 m/min or 105 ft/min |
| Rope speed (anchor retrieval) | 28 m/min or 92 ft/min |
| Power supply (dc) | 12 V or 24 V |
| Motor power | 1000 W |
| Net weight | 16.5 kg (36.3 lbs) |
The above models are also available in 165mm TDC (Top deck clearance) on request. Every Maxwell RC8 automatic rope/chain windlass includes motor/ gearbox and reversing solenoid. Other electrical accessories need to be ordered separately
Note: RC8-8 Suitable for 8mm (5/16”) Chain and 14-16mm (9/16" - 5/8”) Nylon Rope.
