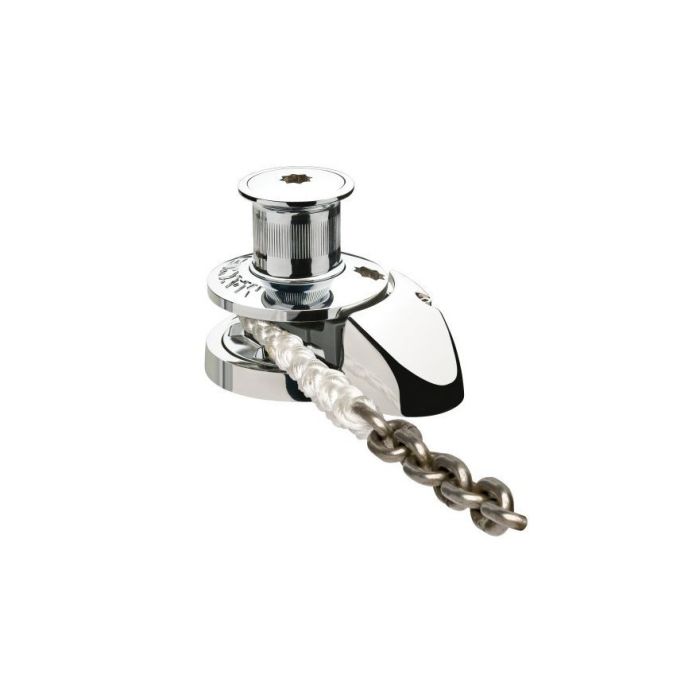

Windlass RC10-10 Vertical - With Capstan, 24V, 1200W, 850 kg Max Pull, 10mm Chain, 100mm TDC, CW

Maxwell
AED 10,156.00 Excl. tax

Stock Status: In stock

EEPN 01.01.0018 | OEM P102578
Windlass RC10-10 Vertical - With Capstan, 12V, 1200W, 850 kg Max Pull, 10mm Chain, 100mm TDC, CW
Windlass RC10-10 Vertical - With Capstan, 12V, 1200W, 850 kg Max Pull, 10mm Chain, 100mm TDC, CW
EEPN: 01.01.0017
AED 10,156.00
Out of Stock
Windlass RC10-10 Vertical - Low Profile, 12V, 1200W, 850 kg Max Pull, 10mm Chain, 100mm TDC, CW
Windlass RC10-10 Vertical - Low Profile, 12V, 1200W, 850 kg Max Pull, 10mm Chain, 100mm TDC, CW
EEPN: 01.01.0015
AED 9,435.00
Out of Stock
Windlass RC10-10 Vertical - Low Profile, 24V, 1200W, 850 kg Max Pull, 10mm Chain, 100mm TDC, CW
Windlass RC10-10 Vertical - Low Profile, 24V, 1200W, 850 kg Max Pull, 10mm Chain, 100mm TDC, CW
EEPN: 01.01.0016
AED 9,435.00
Out of Stock

Download Document

Selection Chart Guide
document-text

Description

Maxwell Windlass + capstan RC10-10 24V 1200W 100mm TDC CW (clockwise)

cog

General Specification

Model RC10 - 10 10 mm - 3⁄8”
Maximum pull 850 kg (1870 lbs)
Chain short link 10 mm or 3⁄8”
Rope size (nylon)* 16 mm 5⁄8”
Chain speed (Normal working load ) 24 m/min or 79 ft/min
Rope speed (anchor retrieval) 20 m/min or 65 ft/min
Power supply (dc) 12 V or 24 V
Motor power 1200W
Net weight 20 kg (44 lbs)

* 8 strand recommended.

Every Maxwell RC10 automatic rope/chain windlass includes motor/ gearbox and reversing solenoid. Other electrical accessories need to be ordered separately
