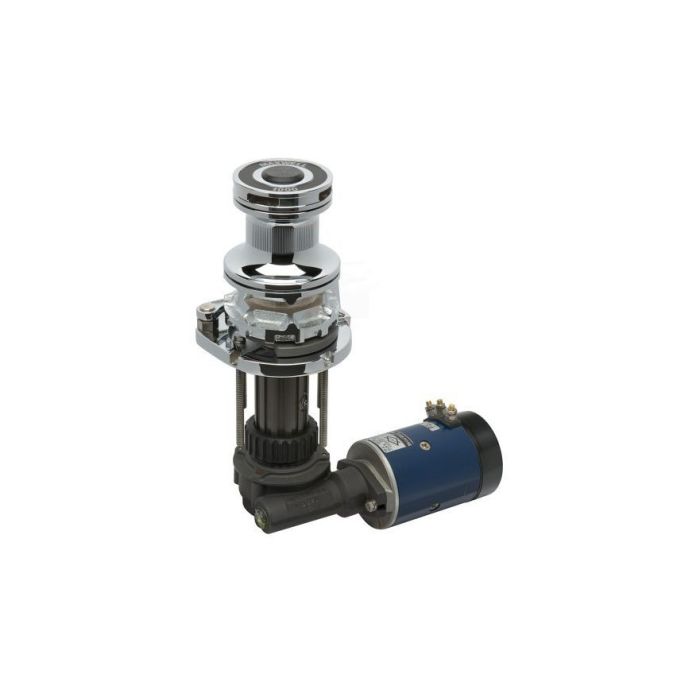

Windlass VW1000 Vertical - With Capstan, 24V, 1000W, 700 kg Max Pull, 6-10mm Chain, 100mm TDC

Windlass VW1000 Vertical - With Capstan, 24V, 1000W, 700 kg Max Pull, 6-10mm Chain, 100mm TDC
Maxwell
AED 8,845.20 Excl. tax
35% OFF |
AED 13,608.00

Stock Status: In stock

EEPN 01.01.0072 | OEM P102770
Hydraulic Windlass VWLP1000 Vertical/Horizontal - Low Profile, 20 LPM, 100 bar, 700 kg Max Pull, 6-10mm Chain, 100mm TDC
Hydraulic Windlass VWLP1000 Vertical/Horizontal - Low Profile, 20 LPM, 100 bar, 700 kg Max Pull, 6-10mm Chain, 100mm TDC
EEPN: 01.01.0156
AED 15,479.00
Out of Stock
Hydraulic Windlass VW1000 Vertical/Horizontal - With Capstan, 20 LPM, 100 bar, 700 kg Max Pull, 6-10mm Chain, 100mm TDC
Hydraulic Windlass VW1000 Vertical/Horizontal - With Capstan, 20 LPM, 100 bar, 700 kg Max Pull, 6-10mm Chain, 100mm TDC
EEPN: 01.01.0073
AED 15,951.00
Out of Stock

Download Document

Selection Chart Guide
document-text

Description

Maxwell Windlass+capstan VW1000 24V CW "100 mm TDC 1000W (6-8 mm short link chain) Note: specify chainwheel size at the time of order

cog

General Specification

Model 1000
Maximum pull 700 kg (1540 lbs)
Static hold 1500 kg (3300 lbs)
Chain short link 6-10 mm
Line speed** (normal speed) 18 m/min or 59 ft/min
Power supply (dc) 12 or 24V
Motor (watts) 1000W
 Net weight (electric) 22 kg (50 lbs)
 For hydraulic version:
- Hydraulic Pressure 100 bar or 1450 psi
- Hydraulic flow 20 lpm or 5.3US gpm
- Net weight (Hyd) 15 kg (34 lbs)

** Performance of windlass when hauling rope with capstan. Chain speed may vary depending on size of chain and gypsy.
Note: 1000 VW & 1000 VWLP Suitable for 6-8mm Chain (Chainwheel selected separately)
