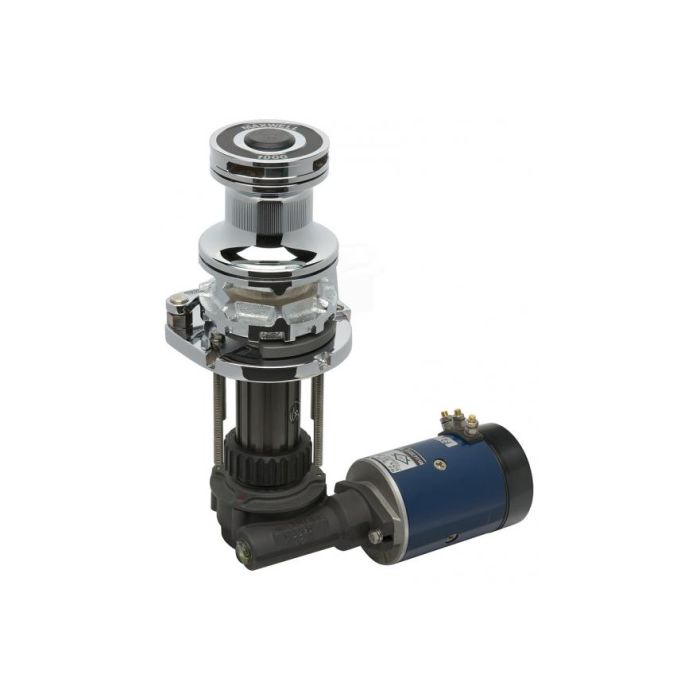

Windlass VWRC10-10 Vertical/Horizontal - With Capstan, 24V, 1200W, 850 kg Max Pull, 10mm Chain, 100mm TDC

Windlass VWRC10-10 Vertical/Horizontal - With Capstan, 24V, 1200W, 850 kg Max Pull, 10mm Chain, 100mm TDC
Maxwell
AED 5,845.45 Excl. tax
35% OFF |
AED 8,993.00

Stock Status: In stock

EEPN 01.01.0151 | OEM P102591
Windlass VWRC10-10 Vertical/Horizontal - With Capstan, 12V, 1200W, 850 kg Max Pull, 10mm Chain, 100mm TDC
Windlass VWRC10-10 Vertical/Horizontal - With Capstan, 12V, 1200W, 850 kg Max Pull, 10mm Chain, 100mm TDC
EEPN: 01.01.0150
AED 8,993.00
Out of Stock
Windlass VWRC10-10 Vertical/Horizontal - Low Profile, 12V, 1200W, 850 kg Max Pull, 10mm Chain, 100mm TDC
Windlass VWRC10-10 Vertical/Horizontal - Low Profile, 12V, 1200W, 850 kg Max Pull, 10mm Chain, 100mm TDC
EEPN: 01.01.0152
AED 8,356.00
Out of Stock
Windlass VWRC10-10 Vertical/Horizontal - Low Profile, 24V, 1200W, 850 kg Max Pull, 10mm Chain, 100mm TDC
Windlass VWRC10-10 Vertical/Horizontal - Low Profile, 24V, 1200W, 850 kg Max Pull, 10mm Chain, 100mm TDC
EEPN: 01.01.0153
AED 8,356.00
Out of Stock

Download Document

Selection Chart Guide
document-text

Description

Maxwell Windlass + capstan VW10-10 24V 1200W 100mm TDC (10mm short link chain & 16mm rope)

cog

General Specification

Model VW10-10
Maximum pull 850 kg (1870 lbs)
Static hold 1500 kg (3300 lbs)
Chain short link 10 mm
Line speed** (normal speed) 24 m/min or 79 ft/min
Power supply (dc) 12 or 24 V
Motor (watts) 1200 W
Net weight (electric) 20 kg (44 lbs)

 ** Performance of windlass when hauling rope with capstan. Chain speed may vary depending on size of chain and gypsy.

Note: VW10-10 Suitable for 10mm (3/8”) Chain and 16mm (5/8”) Nylon Rope
