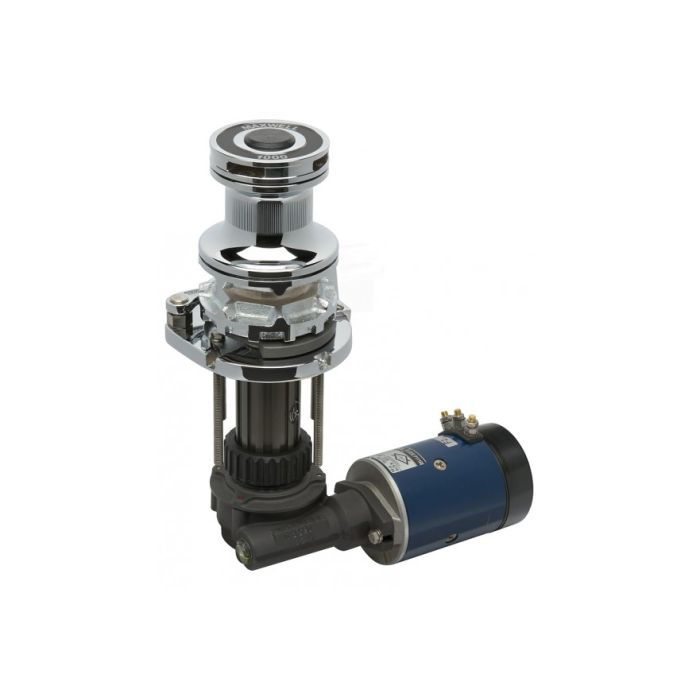

Windlass VWRC10-8 Vertical/Horizontal - With Capstan, 24V, 1000W, 700 kg Max Pull, 8mm Chain, 100mm TDC

Windlass VWRC10-8 Vertical/Horizontal - With Capstan, 24V, 1000W, 700 kg Max Pull, 8mm Chain, 100mm TDC
Maxwell
AED 6,092.45 Excl. tax
35% OFF |
AED 9,373.00

Stock Status: In stock

EEPN 01.01.0147 | OEM P102587
Windlass VWRC10-8 Vertical/Horizontal - With Capstan, 12V, 1000W, 700 kg Max Pull, 8mm Chain, 100mm TDC
Windlass VWRC10-8 Vertical/Horizontal - With Capstan, 12V, 1000W, 700 kg Max Pull, 8mm Chain, 100mm TDC
EEPN: 01.01.0146
AED 9,373.00
Out of Stock
Windlass VWRC10-8 Vertical/Horizontal - Low Profile, 12V, 1000W, 700 kg Max Pull, 8mm Chain, 100mm TDC
Windlass VWRC10-8 Vertical/Horizontal - Low Profile, 12V, 1000W, 700 kg Max Pull, 8mm Chain, 100mm TDC
EEPN: 01.01.0148
AED 8,683.00
Out of Stock
Windlass VWRC10-8 Vertical/Horizontal - Low Profile, 24V, 1000W, 700 kg Max Pull, 8mm Chain, 100mm TDC
Windlass VWRC10-8 Vertical/Horizontal - Low Profile, 24V, 1000W, 700 kg Max Pull, 8mm Chain, 100mm TDC
EEPN: 01.01.0149
AED 8,683.00
Out of Stock

Download Document

Datasheet
Selection Chart Guide
document-text

Description

Maxwell Windlass + capstan VW10-8 24V 1000W 100mm TDC (8mm short link chain & 14-16mm rope)

cog

General Specification

Model VW10-8
Maximum pull 700 kg (1540 lbs)
Static hold 1500 kg (3300 lbs)
Chain short link 8 mm
Line speed** (normal speed) 24 m/min or 79 ft/min
Power supply (dc) 12 or 24
Motor (watts) 1000 W
Net weight (electric) 19 kg (42 lbs)

** Performance of windlass when hauling rope with capstan. Chain speed may vary depending on size of chain and gypsy.

Note: VW10-8 Suitable for 8mm (5/16”) Chain and 14-16mm (9/16-5/8”) Nylon Rope
