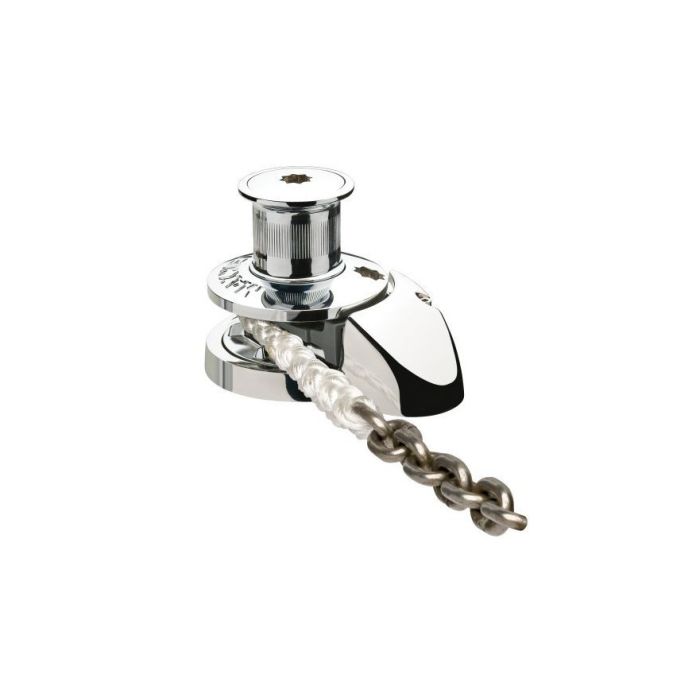

Windlass RC8-6 Vertical - With Capstan, 12V, 600W, 350 kg Max Pull, 6-7mm Chain, 65mm TDC, CW
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description
Maxwell Windlass + Capstan RC8-6 12V 600W 65mm TDC CW (clockwise)
General Specification
| Model | RC8 - 6 |
| Maximum pull | 350 kg (770 lbs) |
| Static hold | 1200 kg (2640 lbs) |
| Chain short link | 6 mm |
| Rope size (3 strand or 8 plait recommended)(nylon)* | 12 mm or ½" |
| Chain speed (anchor retrieval) | 28 m/min or 92 ft/min |
| Rope speed (anchor retrieval) | 24 m/min or 79 ft/min |
| Power supply (dc) | 12 V or 24 V |
| Motor power | 600 W |
| Net weight | 12.5 kg (27.5 lbs) |
* Refer to owners manual for rope size variations.
The above models are also available in 165mm TDC (Top deck clearance) on request. Every Maxwell RC8 automatic rope/chain windlass includes motor/ gearbox and reversing solenoid. Other electrical accessories need to be ordered separately.
Note: RC8-6 Suitable for 6-7mm (1/4”) Chain and 12mm (1/2”) Nylon Rope.
